- Maximum Voltage Rating: 690V AC
- Breaking Capacity: 1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)
- [Ue] Rated Operational Voltage: 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage: 8 kV
- Ambient Air Temperature For Operation: -20-50°C
- Making Capacity: 1750 A 400 V AC-21A || 1750 A 400 V AC-22A || 1750 A 400 V AC-23A
Specifications
| Part Number | VBF6 |
| Brand | Square D |
| Current AC | 83 A |
| Number of Poles | 3 |
| Operator | Rotary |
| Starter Style | IEC |
| Terminal Connection Type | Screw Clamp |
| Height | 125 mm |
| Width | 90 mm |
| Base Dimension | 90 x 90 mm |

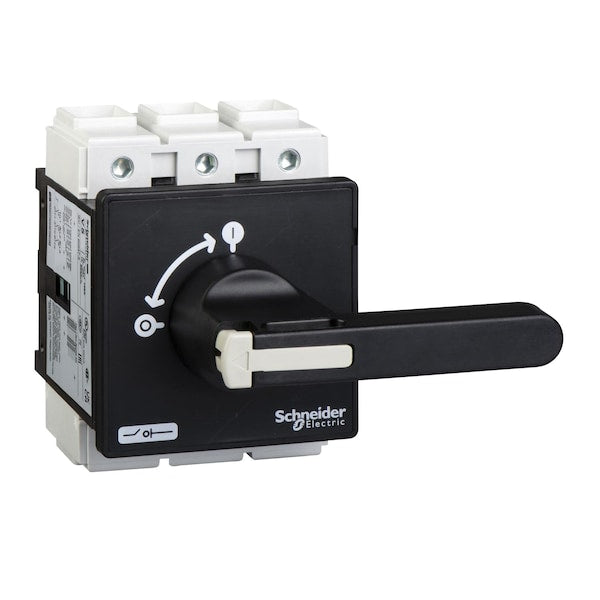

| Item | Manual Motor Switch |
| Maximum Voltage Rating | 690V AC |
| Series | TeSys VARIO |
| Standards | IEC 60947-3 |
| Mounting Support | handle door || switch door |
| Breaking Capacity | 1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A) |
| Fire Resistance | 960°C IEC 60695-2-1 |
| Handle Front Plate Colour | yellow |
| Device Short Name | VBF |
| Compatibility Code | main switch disconnector |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Rotary Handle Mounting Style | direct |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 || IP65 |
| Handle Colour | black |
| Device Application | preventive maintenance |
| Rated Conditional Short-Circuit Current | 10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG |
| Mechanical Robustness | vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Fixing Mode | by 4 screws handle |
| Performance Level | high performance |
| [Ith] Conventional Free Air Thermal Current | 175 A |
| Mechanical Durability | 30000 cycles |
| Device Composition | handle || switch |
| Tightening Torque | power circuit 22.6-22.6 N.m screw clamp terminals |
| Rated Operational Power In W | 30 kW 230 to 240 V AC-3) || 37 kW 400 to 415 V AC-3) || 37 kW 690 V AC-3) || 45 kW 500 V AC-3) || 45 kW 690 V AC-23A) || 55 kW 500 V AC-23A) || 30 kW 230 to 240 V AC-23A) || 45 kW 400 to 415 V AC-23A) |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Ambient Air Temperature For Operation | -20-50°C |
| Making Capacity | 1750 A 400 V AC-21A || 1750 A 400 V AC-22A || 1750 A 400 V AC-23A |
| [Ithe] Conventional Enclosed Thermal Current | 140 A |
| Network Type | AC || DC |
| [Icm] Rated Short-Circuit Making Capacity | 2.8 kA 400 V at Ipeak |
| Electrical Durability | 30000 cycles AC-21 || 30000 cycles DC-1 to 5 |
| Contacts Type And Composition | 3 NO |
| Intermittent Duty Class | 30 |
| Marking | 0 - 1 |
| [Ie] Rated Operational Current | 83 A AC-23 Ue: 400 V |
| Suitability For Isolation | yes |
| [Icw] Rated Short-Time Withstand Current | 2100 A 400 V 1 s |
| Protective Treatment | TC |
Description
The Square D VBF6 is a manual motor switch from the TeSys VARIO series. This type of switch is used for preventive maintenance, providing emergency stop and disconnect functions. It has a maximum voltage rating of 690V AC and a breaking capacity of 1400 A at 400 V AC (AC-21A, AC-22A, and AC-23A), complying with IEC 60947-3 standards.
