- Port Connection Size: 3/4 in
- Union Connection Size: 3/4 in
- Allowable Pressure - Maximum: 87 psi
- Operating Temperature - Minimum: 20 Degrees F
- Packing Material: PTFE/EPDM
- Body Material: Bronze
Specifications
| Part Number | VB-7314-0-4-6 |
| Brand | Schneider Electric |
| Fits Brand | Schneider Electric |
| Application | Chilled Water Control, Hot Water Control |
| Standards | ANSI, ASTM, CRN, PED |
| Product Type | Hydronic Globe Valve |
| OEM Replacement Brand | Schneider Electric |
| Overall Length | 4 in |
| Port Connection Size | 3/4 in |
| Overall Height | 4 15/16 in |
| Union Connection Size | 3/4 in |
| Item | Hydronic Globe Valve |
| Coefficient of Volume (Cv) | 7.5 |
| Allowable Pressure - Maximum | 87 psi |
| Valve Style | Mixing |
| Body Pattern | Three-Way |
| ANSI Rating | ANSI Leakage Class III (B Port), ANSI Leakage Class IV (A Port), ANSI Leakage Class V |
| Port Connection Type | Union Sweat |
| Specific Valve Action | Stem Up to Close |
| Operating Temperature - Minimum | 20 Degrees F |
| Packing Material | PTFE/EPDM |
| Leakage Rate | 0.1% |
| Manufacturer Series | VB-7300 |
| Body Material | Bronze |
| Configuration | Straight-Thru |
| Flow Characteristic | Linear |
| Trim Material | Brass |
| Includes Actuator | Actuator Not Included |
| Stem Material | 316 Stainless Steel |
| Seat Material | Brass/Bronze |
| Stem Travel | 7/16 in |
| Operating Temperature - Maximum | 281 Degrees F |
| For Media | Water-Glycol Solution to 50% |
Description

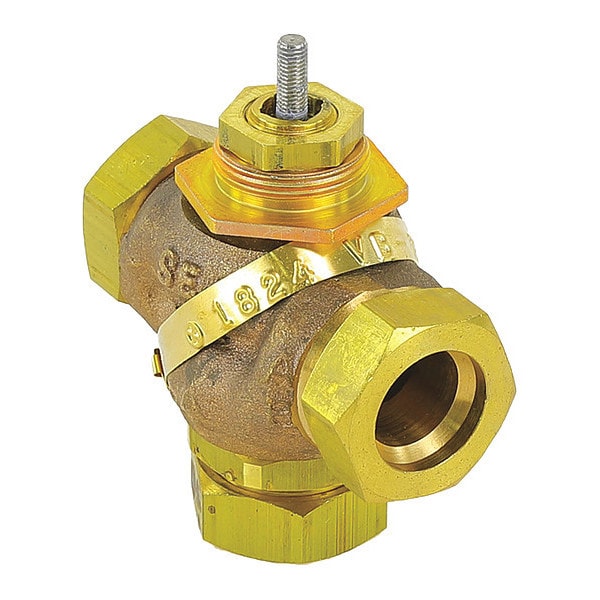

The Schneider Electric VB-7314-0-4-6 is a hydronic globe valve. This valve regulates the flow of water in a hydronic system. It is used for chilled water control and hot water control, with a maximum allowable pressure of 87 psi and ANSI leakage ratings of Class III (B Port), Class IV (A Port), and Class V.
