- Voltage: 24V AC
- Ambient Temp. Range: -4 Degrees to 131 Degrees F
- Input Voltage: 24V AC
- NEMA Rating: 4X
- Maximum Operating Temperature: 131 Degrees F
- Minimum Operating Temperature: -4 Degrees F
Specifications
| Part Number | VA9310-HGA-1 |
| Brand | Johnson Controls |
| Mounting Type | Direct Mount |
| Spring Return | Non-Spring Return |
| Signal Type | Floating Point |
| Torque | 88 in-lb |
| Voltage | 24V AC |
| Depth | 2 11/16 in |
| Height | 6 in |
| Width | 4 1/4 in |
| Overall Width | 4 1/4 in |
| Overall Height | 6 in |
| Overall Depth | 2 11/16 in |
| Electrical Lead Length | 120 in |
| Stroke Length | Not Rated |
| Switch Type | 2 SPDT |
| Timing | 60 sec |
| Electrical Connections | Spade Terminals |
| Motor Direction | CW or CCW |
| Shaft Type | Self-Centering Clamping |
| Includes | Anti-Rotation Bracket |
| Power Consumption | 3.2 VA |
| For Use With | Dampers and Valves |
| Stroke Deg. | 90 |
| Ambient Temp. Range | -4 Degrees to 131 Degrees F |
| Item | Electric Ball Valve Actuator |
| Product Type | Electric Ball Valve Actuator |
| Input Voltage | 24V AC |
| NEMA Rating | 4X |
| Shaft Rotation | CW/CCW |
| Valve Application | Valve |
| Maximum Operating Temperature | 131 Degrees F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Contact Form | SPDT |
| Rated Torque | 53 in-lb |
| Time to Close | 60 sec |
| Minimum Operating Temperature | -4 Degrees F |
| Number of Auxiliary Switches | 0 |
| Stroke Degree | 90 Degrees |
| Electrical Connection Type | Screw Terminals |
| Cycle Time | 60 sec |
| Compatible Series | VG1000 |
| Operating Temperature - Maximum | 131 Degrees F |
| Auxiliary Contact Form | SPDT |
| Operating Temperature - Minimum | -4 Degrees F |
| Return Action | Non-Spring Return |
| Mounting Style | Direct Mount |
| Control Signal | Floating Point |
Description

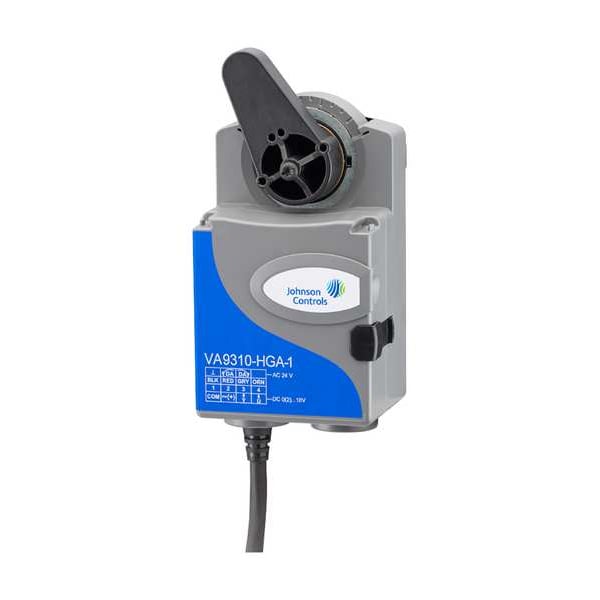

The Johnson Controls VA9310-HGA-1 is a floating point electric actuator. This type of actuator positions dampers or valves in response to a control signal. It operates on 24V AC and includes a self-centering clamping shaft and an anti-rotation bracket.
