- Body Material: Brass
- Voltage: 24
- Max. Water Temp. (Deg. F): 200 Degrees F
- Connection Type/Size: Sweat 3/4
- Port Connection Size: 3/4 in
- Operating Temperature - Maximum: 125 Degrees F
Specifications
| Part Number | V8043F5036 |
| Brand | Honeywell |
| Body Material | Brass |
| Voltage | 24 |
| For Use With | 2 Wire Control |
| Max. Water Temp. (Deg. F) | 200 Degrees F |
| Width | 2 3/8 in |
| Depth | 3 1/2 in |
| Connection Type/Size | Sweat 3/4 |
| Height | 5 3/4 in |
| Overall Width | 3 1/2 in |
| Port Connection Size | 3/4 in |
| Overall Depth | 2 3/8 in |
| Overall Length | 4 3/8 in |
| Item | Motorized Zone Valve |
| Agency Compliance | CSA, UL |
| Coefficient of Volume | 3.5 |
| Electrical Connections | Terminal Board |
| Type | Normally Closed |
| Includes | 1/2 in Conduit Conection, Manual Opening Lever, Spring Return |
| Standards | CSA |
| Application | Chilled/Hot Water Control |
| Operating Temperature - Maximum | 125 Degrees F |
| Fluid Temperature - Maximum | 200 Degrees F |
| Actuator Voltage | 24V AC |
| Distance Between Inlet and Outlet Port | 3 11/16 in |
| Frequency | 60 Hz |
| Spring Action | Spring Return |
| Body Pattern | Two-Way |
| Valve Type | Ball |
| Port Connection Type | Sweat |
| Stem Material | Stainless Steel |
| Actuator Control Signal | On/Off |
| Fluid Temperature - Minimum | 50 Degrees F |
| Contact Form | SPST |
| Gasket/Plug Material | Buna-N |
| Close-Off Pressure | 20 psi |
| Includes Actuator | Actuator Included |
| Coefficient of Volume (Cv) | 3.5 |
| Actuator Return Action | Spring Return |
| Installation Orientation | Horizontal |
| For Media | Water |
| Valve Action | Normally Closed |
| Actuator Type | Electric |
| Port Connection Gender | Female |
Description

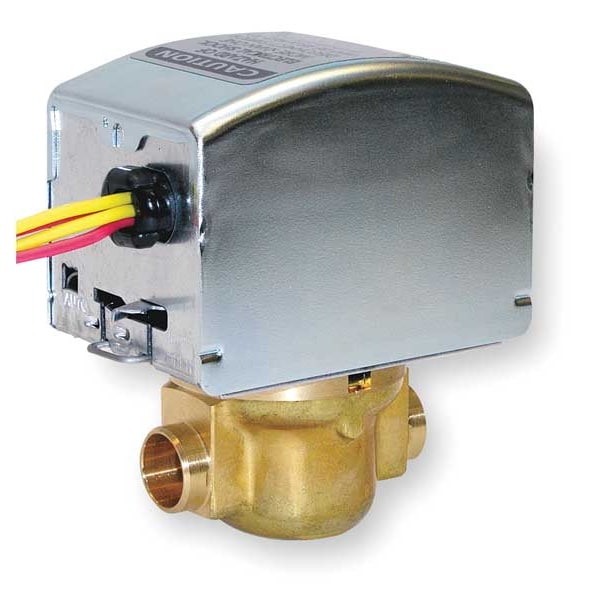

The Honeywell V8043F5036 is a 5000 Series motorized zone valve. This 24-volt, 3/4-inch sweat, normally closed two-way valve controls water flow in a hydronic system, operating with a two-wire control and a terminal board electrical connection. It is constructed with a brass body and is rated for a maximum water temperature of 200 degrees Fahrenheit.
