- Body Material: Brass
- Close-Off Pressure: 20 psi
- Fluid Temperature - Minimum: 50 Degrees F
- Port Connection Size: 1/2 in
- Fluid Temperature - Maximum: 200 Degrees F
- Frequency: 50/60 Hz
Specifications
| Part Number | V8043A1011 |
| Brand | Honeywell |
| Body Material | Brass |
| Standards | UL File MH11826 |
| Overall Length | 2 3/8 in |
| Close-Off Pressure | 20 psi |
| Fluid Temperature - Minimum | 50 Degrees F |
| Electrical Lead Length | 18 in |
| Port Connection Size | 1/2 in |
| Overall Depth | 4 in |
| Overall Width | 3 11/16 in |
| Item | Hydronic Zone Valve |
| Fluid Temperature - Maximum | 200 Degrees F |
| For Media | Water |
| Actuator Type | Electric |
| Spring Action | Spring Return |
| Frequency | 50/60 Hz |
| Actuator Return Action | Spring Return |
| Distance Between Inlet and Outlet Port | 3 11/16 in |
| Application | Chilled/Hot Water Control |
| Includes Electrical Leads | Electrical Leads Included |
| Actuator Control Signal | On/Off |
| Includes Actuator | Actuator Included |
| Operating Temperature - Maximum | 125 Degrees F |
| Coefficient of Volume (Cv) | 3.5 |
| Port Connection Type | Sweat |
| Actuator Housing Material | Brass |
| Valve Type | Ball |
| Actuator Voltage | 24V AC |
| Valve Action | Normally Closed |
| Actuator Gears Material | Brass |
| Actuator Cover Material | Zinc Plated Steel |
| Gasket/Plug Material | Buna-N Rubber (NBR) |
| Installation Orientation | Horizontal, Vertical |
| Stem Material | Stainless Steel |
| Body Pattern | Two-Way |
Description

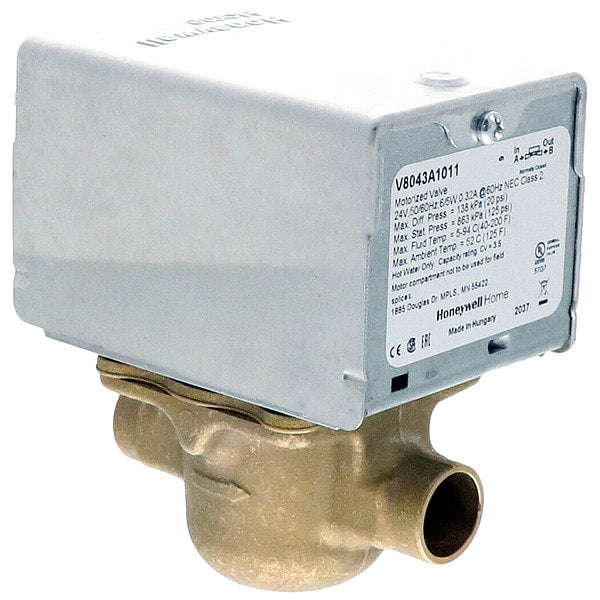

The Honeywell V8043A1011 is a hydronic zone valve with a brass body and an electric actuator. This type of valve controls the flow of hot water in a hydronic heating system, opening and closing in response to a thermostat signal. It is a 24-volt, 2-position, normally closed valve with a 1/2-inch sweat connection, a close-off pressure of 20 psi, and a fluid temperature range of 50 to 200 degrees Fahrenheit. The valve is UL listed under File MH11826.
