- Connection Size: 1/2 FNPT
- Voltage: 125/250V AC
- Body Material: Brass
- Min. Fluid Temp. (F): -4 Degrees F
- Max. Duct Size: 1/2 in
- For Pipe Size: 1/2 in, 1/4 in, 2 in, 3/8 in
Specifications
| Part Number | V6EPB-B-S-1-B |
| Brand | Dwyer Instruments |
| Connection Size | 1/2 FNPT |
| Switch Type | SPDT |
| Voltage | 125/250V AC |
| Body Material | Brass |
| Min. Fluid Temp. (F) | -4 Degrees F |
| Max. Duct Size | 1/2 in |
| Overall Length | 3.6 in |
| For Pipe Size | 1/2 in, 1/4 in, 2 in, 3/8 in |
| Overall Height | 4.8 in |
| Overall Width | 3.6 in |
| Item | Liquid Flow Switch |
| Min. Ambient Temp. (F) | -4 Degrees |
| Wetted Materials | 301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic |
| Compliance | CSA, UL |
| Max. Fluid Temp. (F) | 220 Degrees F |
| For Use With | Liquids or Gases |
| Application | Coolant Loops, Other |
| Hz | 50/60 |
| Standards | ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed |
| Switch Enclosure | NEMA 4 |
| Max. Ambient Temp. (F) | 167 Degrees F |
| Phase | Single |
| Type | Piston |
| Contact Rating | 5A at 125/250V AC |
| Material of Construction | Brass |
| Max. Pressure (PSI) | 250 psi |
| Flow Rate | 1.5 gpm |
| Connection Type | NPT |
| Housing Material | Brass |
| Ambient Temperature - Minimum | -4 Degrees F |
| Contact Rating (AC) | 5 A @ 125/250V |
| Media Temperature - Maximum | 220 Degrees F |
| Set Point Configuration | Adjustable |
| Frequency | 50 Hz, 60 Hz |
| Switch Position | Normally Closed, Normally Open |
| Flow Switch Type | Paddle |
| Media Temperature - Minimum | -4 Degrees F |
| Wetted Material | 301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel |
| Hazardous Location Specification | Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G |
| Ambient Temperature - Maximum | 167 Degrees F |
| Contact Rating (DC) | 18 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models) |
Description

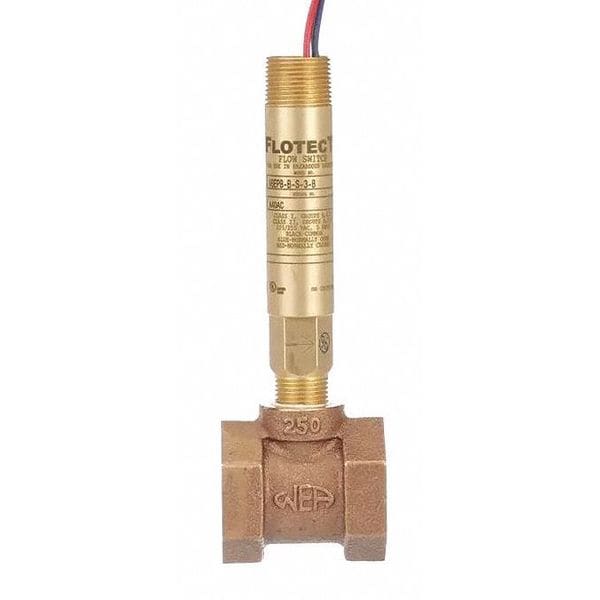

The Dwyer Instruments V6EPB-B-S-1-B is a 1/2" brass liquid flow switch with a SPDT switch rated for 125/250V AC. This switch detects the presence or absence of liquid flow in a pipe and actuates an electrical contact. It is constructed with a brass body and wetted materials including 301 and 302 stainless steel, brass, and ceramic, with a minimum fluid and ambient temperature rating of -4 degrees F.
