- Body Material: Brass
- Connection Type/Size: Sweat 3/4
- Port Connection Size: 3/4 in
- Max. Water Temp. (Deg. F): 36 to 248
- Close-Off Pressure: 58 psi
- Operating Temperature - Minimum: 36 Degrees F
Specifications
| Part Number | V5852A2072 |
| Brand | Honeywell |
| Body Material | Brass |
| Overall Height | 2 15/32 in |
| Overall Length | 3 7/32 in |
| Height | 2 15/32 in |
| For Use With | Water or Glycol Solution 50% Max |
| Depth | 3 11/32 in |
| Connection Type/Size | Sweat 3/4 |
| Width | 1 in |
| Port Connection Size | 3/4 in |
| Overall Depth | 1 3/16 in |
| Item | Hydronic Globe Valve |
| Specifications | Long Stroke Allows Wider Range Of Control. Soft Valve Seat Provides Low Leakage Rate. Threaded Plastic Cover/Manual Handle Allows Manual Operation. Easily Installed In Areas Where Space Is Limited. |
| Coefficient of Volume | 4.9 |
| Safe Working Water PSI | 240 psi |
| Agency Compliance | CRN |
| Includes | Installation Manual |
| Description/Special Features | For Use With Series 1000 Actuators: M6410, M7410, M6435, M7435 & Mp958 Pneumatic Actuator |
| Max. Water Temp. (Deg. F) | 36 to 248 |
| Safe Working Steam PSI | 40.5 psi |
| Type | 2-Way, Cartridge |
| Close-Off Pressure | 58 psi |
| Flow Characteristic | Equal Percentage |
| Includes Actuator | Actuator Not Included |
| ANSI Rating | ANSI Leakage Class IV |
| Valve Action | Normally Closed, Normally Open |
| Operating Temperature - Minimum | 36 Degrees F |
| Leakage Rate | 0.01% |
| Port Connection Type | Sweat |
| Coefficient of Volume (Cv) | 4.9 |
| Seat Material | Brass |
| Port Connection Gender | Female |
| Specific Valve Action | Stem Down to Close |
| Stem Material | Stainless Steel |
| Stem Travel | 1/4 in |
| Manufacturer Series | V58 |
| Cartridge Material | Brass |
| Operating Temperature - Maximum | 230 Degrees F |
| For Media | Water-Glycol Solution to 50% |
| Configuration | Straight-Thru |
| Rangeability | 100:1 |
| Body Pattern | Two-Way |
Description

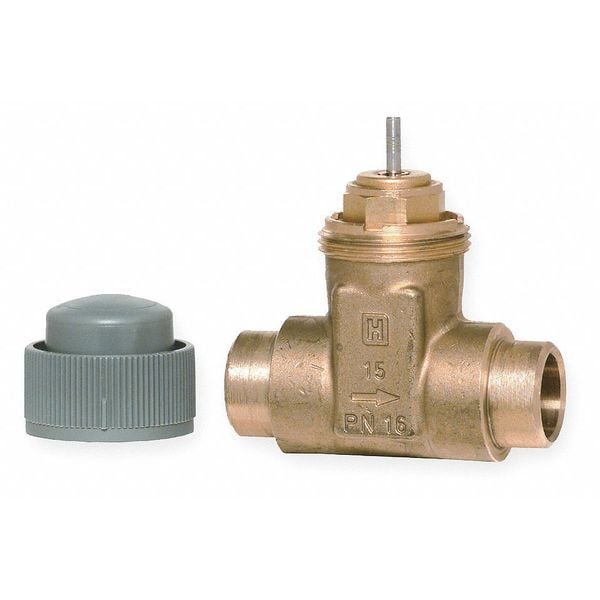

The Honeywell V5852A2072 is a V58 Series 2-way hydronic globe valve made of brass. This valve regulates water or glycol solution (50% max) flow in a system, with a 4.9 Cv rating and a maximum water temperature range of 36 to 248 degrees Fahrenheit. It is designed for use with Series 1000 actuators, including models M6410, M7410, M6435, M7435, and the MP958 pneumatic actuator.
