- Pressure Range: 0 to 20 psi
- Pilot Port Connection Size: 1/8 in
- Main Port Connection Size: 1/8 in
- Output Port Connection Size: 1/8 in
- Ambient Temp. Range (F): 150
- Body Material: Die Cast Aluminum
Specifications
| Part Number | V-9502-90 |
| Brand | Johnson Controls |
| Air Connections | 1/4 Barb |
| Pressure Range | 0 to 20 psi |
| Max. Safe Air PSI | 25 psi |
| Includes | Interconnecting Linkage, Mounting Hardware |
| Construction | Die Cast Aluminum |
| Depth | 3 1/4 in |
| Width | 2 23/32 in |
| Height | 3 7/8 in |
| Pilot Port Connection Size | 1/8 in |
| Overall Depth | 3 1/4 in |
| Overall Length | 3 1/4 in |
| Overall Height | 3 7/8 in |
| Main Port Connection Size | 1/8 in |
| Overall Width | 2 3/4 in |
| Output Port Connection Size | 1/8 in |
| Item | Pneumatic Actuator Positioner |
| Control Range | 3 to 13 psi |
| Application | Pneumatic Valve Actuators |
| Ambient Temp. Range (F) | 150 |
| Air Consumption | 5 scim |
| Product Type | Damper Actuator Positioner |
| Compatible Manufacturer Model Number | V-3000-8011, V-3000-8012 |
| Main Port Connection Type | NPT |
| Body Material | Die Cast Aluminum |
| Diaphragm Material | Rubber |
| Minimum Starting Point | 2 psi |
| Minimum Operating Span | 3 psi |
| Output Port Connection Type | NPT |
| Minimum Operating Temperature | -20 Degrees F |
| Maximum Starting Point | 12 psi |
| Cover Material | Plastic |
| For Actuator | Pneumatic Valve |
| Output Capacity | 1,600 scim |
| Adjustment Method | Screwdriver |
| Maximum Operating Temperature | 150 Degrees F |
| Compatible Product Type | Pneumatic Actuators |
| Pilot Port Connection Type | NPT |
| Supply Pressure | 20 psi |
| Maximum Operating Span | 13 psi |
Description

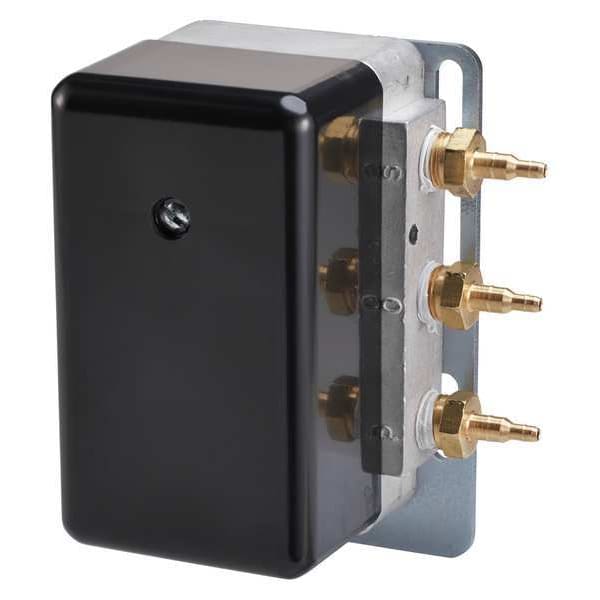

The Johnson Controls V-9502-90 is a pneumatic actuator positioner. This device precisely positions a pneumatic valve actuator based on a control signal. It is designed for use with the V-3000-8011 actuator, operates within a 0 to 20 psi pressure range, and includes interconnecting linkage and mounting hardware.
