- Voltage: 90 to 220V AC
- Input Voltage: 90 to 220V AC
- Temp. Range: -58 Degrees to 302 Degrees F
- Amps: 20
- Temperature - Minimum: -58 Degrees F
- Temperature - Maximum: 302 Degrees F
Specifications
| Part Number | TSW-150 |
| Brand | Dwyer Instruments |
| Sensor Type | Thermistor |
| Voltage | 90 to 220V AC |
| Description/Special Features | Dual Red LED Display, Single Stage, Weather-Proof |
| Input Voltage | 90 to 220V AC |
| Depth | 2.59 in |
| Length | 6.65 in |
| Width | 3.63 in |
| Length (Straight Wireway) | 6.65 in |
| Overall Width | 3 5/8 in |
| Overall Length | 6 5/8 in |
| Item | Temperature Controller |
| Digital/Analog | Digital |
| Switch Function | SPDT |
| Output | Relay |
| Temp. Range | -58 Degrees to 302 Degrees F |
| Control Mode | On/Off Action |
| Amps | 20 |
| Control Period | Programmable |
| Standards | CE, cUL, UL |
| Power Consumption | 3.6 VA |
| Setting Accuracy | +/-1% FS |
| Hysteresis | 1 Degrees to 20 Degrees |
| Proportional Band | 1 Degrees to 20 Degrees |
| Features | Weatherproof housing; Single or dual stage models; Configuration key; Physical and passcode parameter setting protection; TS-8T temperature probe included |
| Accuracy | +/-1% FS |
| Series | TSW |
| Display | 3 digits plus sign. |
| Power Requirements | 90 to 255 VAC or 12 to 24 VAC/VDC (±10%) depending on model. |
| Agency Approvals | CE, cURus. |
| Memory Backup | Non-volatile memory. |
| Enclosure Rating | NEMA 4X (IP66). |
| Temperature - Minimum | -58 Degrees F |
| Display Type | Digital |
| Product Type | Temperature Controller |
| Current | 20 |
| Temperature - Maximum | 302 Degrees F |
Description

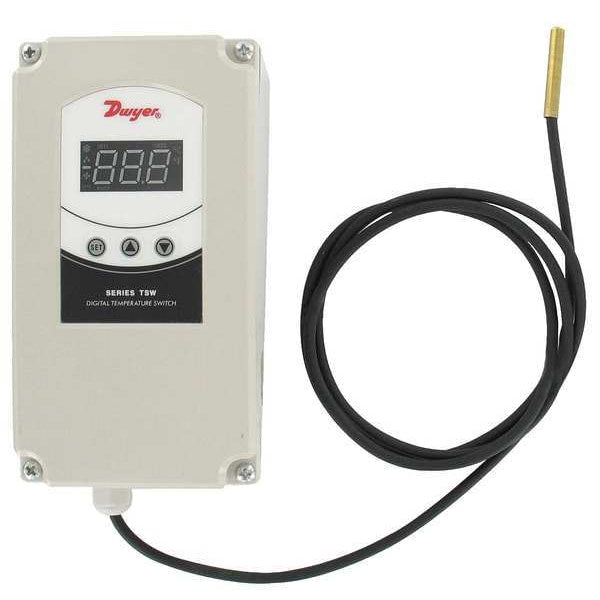

The Dwyer Instruments TSW-150 is a single-stage, weatherproof digital temperature switch with a dual red LED display. It functions as a temperature controller, operating on a 90 to 220V AC input voltage and a 20 amp rating, with a temperature range of -58 to 302 degrees Fahrenheit. The unit uses a thermistor sensor and complies with CE, cUL, and UL standards.
