- Housing Material: Plastic
- Voltage: 120v
- Max. Amps: 0.54 A
- Max. Wattage: 65
- Duct Diameter: 6 in
- Overall Diameter: 8 3/4 in
Specifications
| Part Number | TD-150S |
| Brand | Soler & Palau |
| Housing Material | Plastic |
| Fits Duct Dia. | 6 in |
| Voltage | 120v |
| Max. Amps | 0.54 A |
| Max. Wattage | 65 |
| Housing Dia. | 8 11/16 in |
| Length | 10 13/16 in |
| Width | 19 1/16 in |
| Inlet and Outlet Dia. | 6 in |
| Flange Width | 1 1/8 in |
| Height | 8 11/16 in |
| Duct Diameter | 6 in |
| Overall Width | 19 1/8 in |
| Overall Height | 8 3/4 in |
| Overall Diameter | 8 3/4 in |
| Item | In-Line Duct Fan |
| Number of Speeds | 1 |
| Motor RPM | 2700/2000 |
| Max. Inlet Temp. | 140 Degrees F |
| CFM @ 0.375-In. SP | 271/154 cfm |
| Housing Finish | Off White |
| Bearing Type | Ball Bearing |
| CFM @ 0.500-In. SP | 257/120 cfm |
| CFM @ 1.000-In. SP | 77/0 cfm |
| CFM @ 0.125-In. SP | 315/209 cfm |
| CFM @ 0.750-In. SP | 178/62 cfm |
| Phase | 1 |
| Standards | cULus, HVI |
| CFM @ 0.250-In. SP | 286/181 cfm |
| Motor Enclosure | Totally Enclosed |
| Green Certification or Other Recognition | ENERGY STAR |
| Speed Control | Yes |
| Mounting Position | Horizontal or Vertical |
| Includes | Mounting Bracket |
| CFM @ 0.000-In. SP | 333/239 |
| Hz | 60 |
| Airflow @ 0.000 in SP | 333 cfm |
| Mounting Orientation | Horizontal or Vertical |
| Motor IP Rating | IP44 |
| Housing Color | Off White |
| Application | General Purpose |
| Speed Control Included | No |
| For Fan Type | In-Line Duct Fan |
| High-Efficiency Motor | No |
| Motor Speed | 2,700 RPM |
| Nameplate Voltage | 120V AC |
| Speed Controllable | Yes |
| Maximum Inlet Air Temperature | 140 Degrees F |
| Motor Output Power | 65 W |
Description

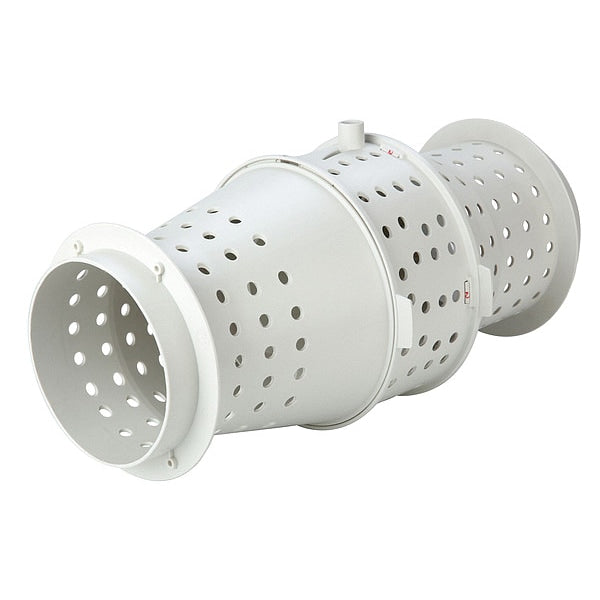

The Soler & Palau TD-150S is a 6-inch diameter mixed flow in-line duct fan. This fan moves air through ductwork using a mixed flow impeller for quiet operation. It operates at 120 volts, 60Hz, with a maximum of 0.54 amps and 65 watts, and features a ball bearing motor with speeds of 2700/2000 RPM. The plastic housing is rated for a maximum inlet temperature of 140 degrees Fahrenheit.
