- Voltage: 24/120/240VAC
- Sensing Bulb Diameter: 1/4 in
- Full Load Amps @ 240VAC: 4.9 A
- Full Load Amps @ 120VAC: 9.8 A
- Voltage Range: 24 to 240V AC
- Input Voltage: 120V AC, 240V AC, 24V AC
Specifications
| Part Number | T775P2003 |
| Brand | Honeywell |
| Type | Boiler Reset Control |
| Voltage | 24/120/240VAC |
| Switch Action | Close on Rise, Open on Rise |
| Includes | 50021579-001 |
| For Use With | Heating, Boiler Controls |
| Height | 8 3/16 in |
| Width | 4 7/16 in |
| Depth | 2 15/16 in |
| Sensing Bulb Dia. | 1/4 in |
| Sensing Bulb Length | 2 in |
| Sensing Bulb Diameter | 1/4 in |
| Overall Depth | 3 in |
| Overall Height | 8 1/8 in |
| Overall Width | 4 3/8 in |
| Differential | 1 Degrees to 150 Degrees F |
| Display Type | Digital |
| Number of Relay Inputs | 3 |
| Item | Temperature Control |
| Switch Type | 4 SPDT |
| Number of Relay Outputs | 4 |
| Agency Compliance | CE, CUL, IP65, UL |
| Thermostat Switch Type | SPDT |
| Color | Gray |
| Full Load Amps @ 240VAC | 4.9 A |
| Features | Save Time on Installations with the Easy-to-Use Graphical Interface, Large Display and the Intuitive Programming |
| Full Load Amps @ 120VAC | 9.8 A |
| Sensor Type | 50021579-001 |
| Enclosure Type | NEMA 1 |
| Voltage Range | 24 to 240V AC |
| Control Range | -40 Degrees to 248 Degrees F |
| Mounting | Vertical or Horizontal |
| Number of Stages | Single |
| Number of Switches | 4 |
| Standards | C-Tick, cUL, UL 60730-1 |
| Contact Rating Resistive @ 120V | 10A |
| Application | Boiler Control |
| Input Voltage | 120V AC, 240V AC, 24V AC |
| Display | Digital |
| Full Load Current @ 240V AC | 4.9 A |
| Maximum Temperature Differential Setting | 150 Degrees F |
| Housing Color | Gray |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Contact Form | SPDT |
| Horsepower @ 240V AC | 1/2 hp |
| IP Rating | IP65 |
| Temperature Control Function | Heat and Cool |
| Resistive Load Current @ 240V | 29.4 A |
| Maximum Control Temperature | 248 Degrees F |
| Minimum Control Temperature | -40 Degrees F |
| Number of Time Cycles per Day | 2 |
| Full Load Current @ 120V AC | 9.8 A |
| Horsepower @ 120V AC | 1/2 hp |
| Product Type | Temperature Control |
| Variable Output Voltage | Yes |
| NEMA Rating | 1 |
| Resistive Load Current @ 120V | 58.8 A |
| Number of Sensor Inputs | 4 |
| Ambient Humidity | 5% to 95% RH |
| Number of Sensors Included | 3 |
| Power Consumption | 10 VA |
| Number of SPDT Outputs | 4 |
Description

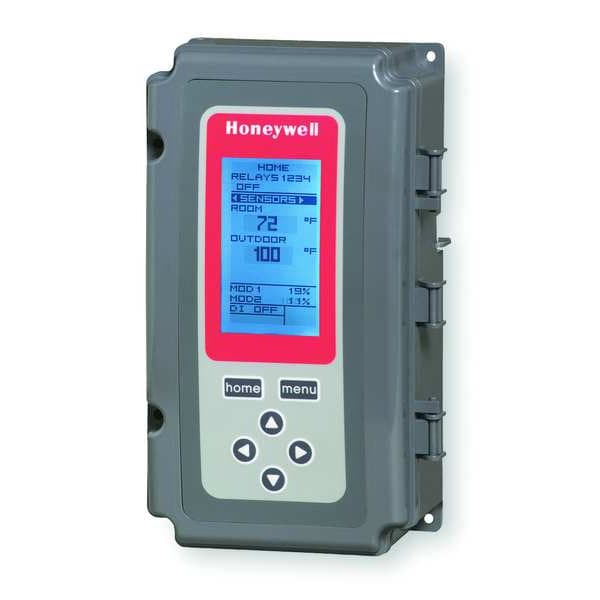

The Honeywell T775P2003 is an electronic boiler reset control and temperature controller. It functions as a temperature control with SPDT switch action, offering close on rise and open on rise operation over a range of -40°F to 248°F. This 24/120/240VAC unit includes a 50021579-001 accessory and is used with heating and boiler controls.
