- Nameplate RPM: 3,450
- Voltage: 208V, 230V, 460V
- Full Load Amps: 4.9-5.0/2.5 A
- HP: 1 1/2
- RPM Range: 3,001-3,600
- Phase: Three
Specifications
| Part Number | T32P1AH |
| Brand | U.S. Motors |
| Nameplate RPM | 3,450 |
| Voltage | 208V, 230V, 460V |
| Motor Mounting Type | Rigid Base |
| Full Load Amps | 4.9-5.0/2.5 A |
| Frame | 56H |
| Length Less Shaft | 10 7/16 in |
| Overall Length | 12 3/8 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 15/16 in |
| Item | Motor |
| HP | 1 1/2 |
| Motor Bearings | 6203,6203 |
| Motor Service Factor | 1.15 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| RPM Range | 3,001-3,600 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Application | General Purpose |
| Motor Shaft Rotation | CCW |
| Hz | 60 Hz |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 84 % |
| Standards | CE, CSA Certified, UL Listed |
| Motor Sub Application | Fan/Blower, Pump |
| Motor Thermal Protection | None |
| NEMA Design | B |
| Weight | 32.5 lb |
| Usable @ 208V | Yes |
| Bearing Protection | Double Shields |
Description

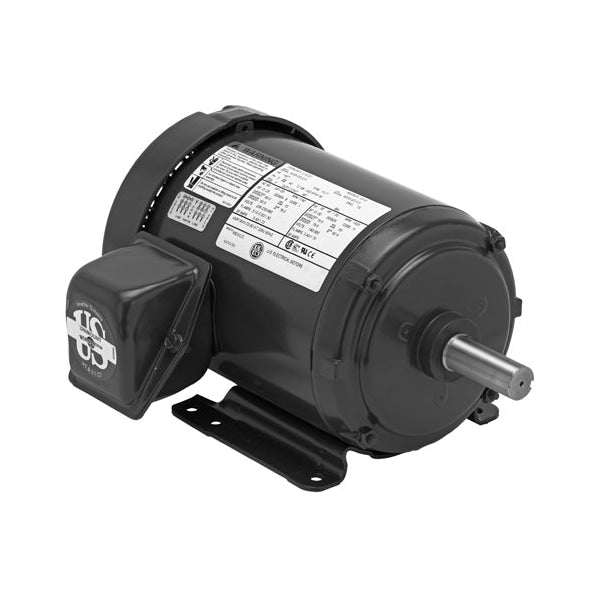

The U.S. Motors T32P1AH is a 1 1/2 HP three-phase motor with a rigid base mounting. It operates at 3,450 RPM and is available in 208V, 230V, and 460V configurations, drawing 4.9-5.0/2.5 full load amps. The motor features a totally enclosed fan-cooled enclosure.
