- Voltage: 120V AC
- Amps: 20 A
- Body Material: Steel
- Wire Size Min: #14 AWG
- Wire Size Max: #12 AWG
- Contact HP @ 240V: 1 hp
Specifications
| Part Number | T1905 |
| Brand | Intermatic |
| Voltage | 120V AC |
| Operation Mode | 25 hour |
| Amps | 20 A |
| Indoor/Outdoor Usage | Indoor |
| Body Material | Steel |
| Height | 7 3/4 in |
| Width | 5 in |
| Depth | 3 in |
| Wire Size Min | #14 AWG |
| Product Depth | 3.4375 in; 87.3 mm |
| Product Width | 5.125 in; 130.2 mm |
| Product Height | 7.875 in; 200 mm |
| Wire Size Max | #12 AWG |
| Overall Height | 7 7/8 in |
| Overall Width | 5 1/8 in |
| Overall Depth | 3 7/16 in |
| Item | Electromechanical Timer |
| Time Minimum Setting | 16 min |
| Enclosure Type | Steel |
| Min. Time Setting | 15 min |
| Max. Time Setting | 23-3/4 hr |
| Contact Form | SPDT |
| Max. On/Off Cycles | 48 |
| Contact HP @ 240V | 1 hp |
| Contact HP @ 120V | 1/2 hp |
| Nominal Max. Time Setting | 24 hr |
| Description/Special Features | Manual On/Off Override does not Interfere with Program |
| NEMA Rating | 1 |
| Number of Poles | 1 |
| Day Skipper | No |
| Time Setting Range | 15 min. to 23-3/4 hr. |
| Type | 24-Hour, Multioperation |
| Number of Trippers Included | 96 |
| Mount | Screw |
| Operating Temp. | -40 to +130 |
| Extra Trippers | 2E132 |
| Standards | cCSAus |
| Product Type | Timer |
| Applications | Timing/Scheduling ON/OFF; Indoor Lighting Control |
| Minimum On Off Time | 15 min |
| Wiring Option | Terminals |
| Motor Load Ratings | 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz |
| Input Voltage Ranges | 125 VAC, 60 Hz |
| Operating Temperature Max | 130°C |
| Packaging Applications | Poultry Feeders; Filters; Heaters; Blowers; Dairy Equipment; Foggers; Fans; Lighting; Electrical Pumps; Motors |
| Power Consumption Max W | 3 W |
| Maximum On Off Operations | 48 |
| Skipper Wheel Operation Mode | Not Included |
| Market | Commercial; Industrial |
| Resistive Load Ratings | 20 A, 125 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz; 20 A, 480 VAC, 60 Hz |
| CSA Certification | cCSAus |
| Operating Temperature Min | -40°C |
| Number Of Circuits | 1 |
| Resistive Load Ratings Ranges | 20 A, 125-480 VAC, 60 Hz |
| Switch Type | SPDT |
| Has Manual Override CVL | Yes |
| Solutions | Machinery & Pumps; Panel Integrators |
| Operating Temperature Max (°F) | 130 |
| Skipper Wheel | Not Included |
| Maximum Power Consumption (W) | 3 W |
| Minimum ON/OFF Times | 15 min |
| Input Voltage Range(s) | 125 VAC, 60 Hz |
| Motor Load Ratings Ranges | 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz |
| Operating Temperature Min (°F) | -40 |
| Resistive | 20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz, 20 A, 480 VAC, 60 Hz |
| Features | Captive Trippers Slide In/Out of Dial |
| Has Manual Override | Yes |
| Maximum ON/OFF Operations | 48 |
| Application | Lighting |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 130 |
| Current Rating - Maximum | 20 A |
| Operating Temperature - Minimum | -40 Degrees F |
| Horsepower @ 120V - Maximum | 1/2 hp |
| AC Voltage Rating | 125V AC |
| Mounting Style | Surface |
| NEMA Enclosure Rating | 1 |
| Horsepower @ 240V - Maximum | 1 hp |
| Number of Trippers - Maximum | 96 |
| On/Off Cycles - Maximum | 48 |
| Operating Temperature - Maximum | 130 Degrees F |
| Time Setting - Maximum | 24 hr |
| Time Setting - Minimum | 15 min |
| Series | T1900 |
| Time Maximum Setting | 25 hr. |
Description

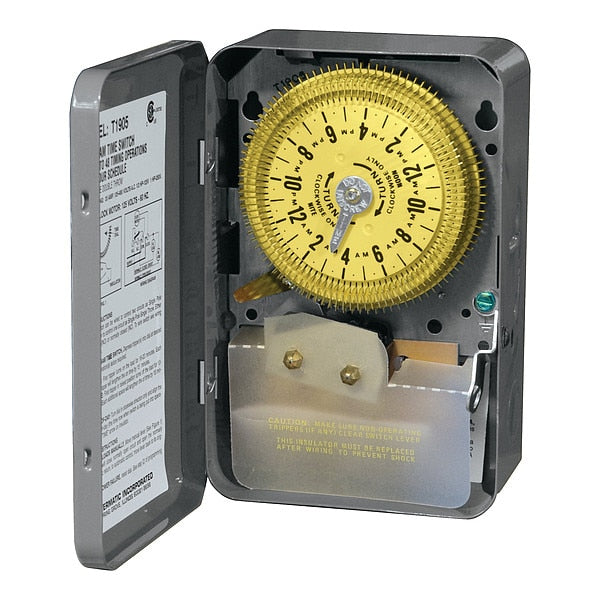

The Intermatic T1905 is an electromechanical timer. This timer controls electrical loads by opening and closing a switch according to a programmed 24-hour schedule, and it features a manual On/Off override that does not interfere with the program. It operates at 120V AC and 20 A, with a steel enclosure and body.
