- Voltage: 120V AC
- Amps: 40 A
- Wire Size Max: #8 AWG
- Wire Size Min: #14 AWG
- NEMA Rating: 1
- Contact HP @ 240V: 5 hp
Specifications
| Part Number | T173 |
| Brand | Intermatic |
| Voltage | 120V AC |
| Operation Mode | 25 hour |
| Amps | 40 A |
| Enclosure Type | STEEL |
| Indoor/Outdoor Usage | Indoor |
| Width | 5 in |
| Depth | 3 in |
| Height | 7 13/16 in |
| Product Height | 7.875 in; 200 mm |
| Wire Size Max | #8 AWG |
| Wire Size Min | #14 AWG |
| Product Depth | 3.4375 in; 87.3 mm |
| Product Width | 5.125 in; 130.2 mm |
| Overall Width | 5 1/8 in |
| Overall Height | 7 7/8 in |
| Overall Depth | 3 7/16 in |
| Item | Electromechanical Timer |
| Min. Time Setting | 1 hr |
| Max. Time Setting | 23 hr |
| Contact Form | DPST |
| Max. On/Off Cycles | 12 |
| Extra Trippers | 11Z965 |
| NEMA Rating | 1 |
| Description/Special Features | Furnished with a Maximum of 12 Trippers, Manual On/Off Override does not Alter Program, Snap-out Timing Mechanism, Up to 12 On/Off Settings Per Day |
| Nominal Max. Time Setting | 24 hr |
| Type | 24-Hour |
| Finish | Metal Enclosure has Gray Enamel |
| Contact HP @ 240V | 5 hp |
| Day Skipper | Yes |
| Number of Poles | 2 |
| Mount | Screw |
| Time Setting Range | 1 hr. to 23 hr. |
| Contact HP @ 120V | 2 hp |
| Number of Trippers Included | 2 |
| Standards | cCSAus, cULus |
| Product Type | Timer |
| Resistive Load Ratings Ranges | 40 A, 120-277 VAC, 60 Hz |
| Operating Temperature Min | -40°C |
| CSA Certification | cCSAus |
| Pilot Duty Load Ratings | 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz |
| Tungsten Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz |
| Inductive Load Ratings | 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Operating Temperature Max | 130°C |
| Motor Load Ratings | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Timing Interval | 1 hr |
| Minimum On Off Time | 1 hour |
| Packaging Applications | Indoor/Outdoor Lighting; Pool Heaters; Pumps; Blowers; Conveyors; Electric Fences; Fans; Filters; Signs; Various Other Electrical Loads; Commercial; Industrial; Residential |
| Application Compatibilities | LED; HID |
| Resistive Load Ratings | 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Switch Type | DPST |
| Electronic Ballast Load Ratings | 16 A, 277 VAC, 60 Hz |
| Number Of Circuits | 1 |
| UL Cerfication File Number | UL916 |
| Power Consumption Max W | 3 W |
| Electronic Ballast Load Ratings Ranges | 16 A, 277 VAC, 60 Hz |
| Solutions | Machinery & Pumps; Panel Integrators |
| UL Certification | cULus |
| Maximum On Off Operations | 10 |
| Has Manual Override CVL | Yes |
| Market | Commercial; Industrial |
| Input Voltage Ranges | 120 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-277 VAC, 60 Hz |
| Skipper Wheel Operation Mode | Not Included |
| Wiring Option | Terminals |
| Inductive Load Ratings Ranges | 40 A, 120-277 VAC, 60 Hz |
| Tungsten Load Ratings Ranges | 40 A, 120-277 VAC, 60 Hz |
| Applications | Timing/Scheduling ON/OFF; Indoor Lighting Control |
| Features | Manual Override, Three Day-Skipper Screws Included |
| Inductive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
| Operating Temperature Min (°F) | -40 |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Skipper Wheel | Not Included |
| Resistive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
| Minimum ON/OFF Times | 1 hour |
| Tungsten (NO) | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
| Tungsten Range(s) | 40 A, 120-277 VAC, 60 Hz |
| Maximum Power Consumption (W) | 3 W |
| Pilot Duty (NO) | 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Has Manual Override | Yes |
| Maximum ON/OFF Operations | 10 |
| Operating Temperature Max (°F) | 130 |
| Electronic Ballast | 16 A, 277 VAC, 60 Hz |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 130 |
| Number of Trippers - Maximum | 2 |
| Mounting Style | Surface |
| Series | T100 |
| AC Voltage Rating | 120V AC |
| Time Setting - Minimum | 1 hr |
| On/Off Cycles - Maximum | 10 |
| Application | Lighting |
| Operating Temperature - Maximum | 130 Degrees F |
| Body Material | Steel |
| Body Color | Grey |
| Compatible Lighting | HID, LED |
| Current Rating - Maximum | 40 A |
| Horsepower @ 120V - Maximum | 2 hp |
| Operating Temperature - Minimum | -40 Degrees F |
| NEMA Enclosure Rating | 1 |
| Horsepower @ 240V - Maximum | 5 hp |
| Time Setting - Maximum | 24 hr |
| Time Maximum Setting | 24 hr. |
| Time Minimum Setting | 1 hr. |
Description

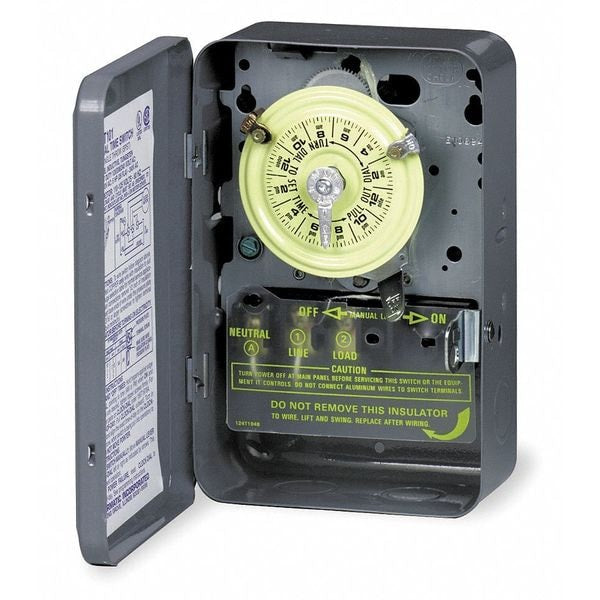

The Intermatic T173 is a 24-hour electromechanical timer. This timer controls the on/off cycles of connected equipment, offering up to 12 on/off settings per day with a manual override that does not alter the program. It is rated for 120V AC, 40 amps, and 5 hp at 240V, housed in a steel NEMA 1 enclosure.
