- Voltage: 230V AC
- RPM Range: 1,701-1,800
- HP: 3/4, 1/4
- Full Load Amps: 5.6/2.8 A
- Phase: Single
- Hz: 60 Hz
Specifications
| Part Number | SVB2074HV1 |
| Brand | Century |
| Voltage | 230V AC |
| Motor Enclosure Design | Open Dripproof |
| RPM Range | 1,701-1,800 |
| HP | 3/4, 1/4 |
| Full Load Amps | 5.6/2.8 A |
| Overall Length | 9 7/16 in |
| Shaft Dia. | 1/2 in |
| Ring Dia. | 2 1/2 in |
| Shaft Length | 1 1/2 in |
| Resilient Ring Dia. | 2 1/2 in |
| Length Less Shaft | 7 15/16 in |
| Item | Evaporative Cooler Motor |
| Phase | Single |
| Motor Thermal Protection | Auto |
| Motor Design | Split-Phase |
| Hz | 60 Hz |
| No. of Speeds | 2 |
| Frame | 56Z |
| Motor Application | HVAC/R |
| Nameplate RPM | 1,725/1,140 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CCWLE |
| Motor Service Factor | 1 |
| Ins. Class | B |
| Ambient Temperature | 40 Degrees C |
| Motor Bearings | Ball |
| Motor Sub Application | Evaporator Cooler |
| Motor Mounting Type | Ring |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC |
| Ring to Ring Center | 7 7/16 in |
| Standards | CSA, UL |
| Features | Moisture Resistant |
| Finish | Varnish |
| Motor Mounting Position | All Angle |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Includes | Hardware, Switch Parts |
| Number of Speeds | 2 |
Description

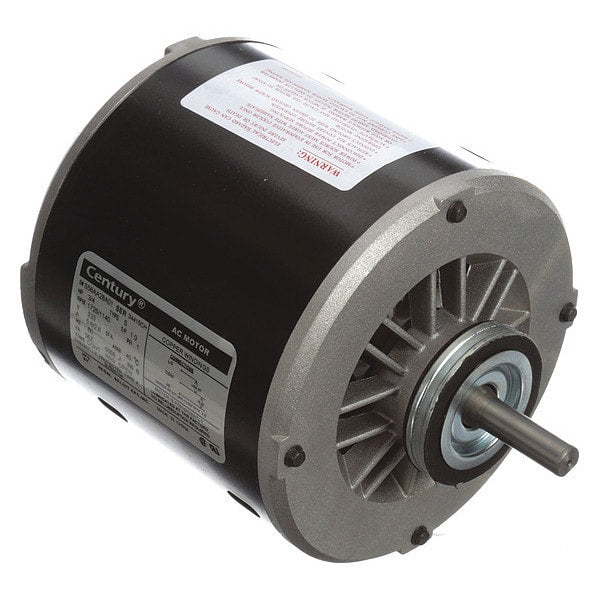

The Century SVB2074HV1 is an evaporative cooler motor, a single-phase, open dripproof unit rated for 230V AC at 60 Hz. This motor powers the fan in an evaporative cooler, available in 3/4 or 1/4 HP with full load amps of 5.6/2.8 A and an RPM range of 1,701-1,800. It features a 56FR frame with a 1-1/2 in. shaft length.
