- BtuH Capacity: 150,000 to 200,000
- Inlet Size: 1/2 in
- Outlet Size: 1/2 in
- Pressure Tap Connection Size: 1/8 in
- Port Connection Size: 1/2 in
- Ambient Temp. Range: 0 Degrees F to 175 Degrees F
Specifications
| Part Number | SV9502H2522 |
| Brand | Honeywell |
| BtuH Capacity | 150,000 to 200,000 |
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Intermittent Pilot |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Pressure Tap Connection Size | 1/8 in |
| Overall Height | 4 7/8 in |
| Port Connection Size | 1/2 in |
| Overall Depth | 3 3/16 in |
| Overall Length | 4 1/8 in |
| Valve Type | Slow Opening |
| For Use With | Furnaces |
| Ambient Temp. Range | 0 Degrees F to 175 Degrees F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | 3.0 in wc to 5.0 in wc |
| Flow Direction | Straight-Thru |
| Includes | Extension Harness, LP Conversion Kit |
| Inlet Pressure Tap | Yes |
| For Media | Liquid Propane, Natural Gas |
| Installation Orientation | Vertical |
| Pilot Type | Intermittent Pilot |
| Includes Conversion Kit | Conversion Kit Included |
| ANSI Rating | ANSI Z223.1 NFPA No. 54 |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Manufacturer Series | SV9502 |
| Electrical Connections | Terminal Blocks |
| Application | Furnaces |
| Valve Design | Single |
| Heating Capacity - Maximum | 200,000 |
| Current | 0.2 A |
| Voltage | 24V AC |
| Operating Temperature - Maximum | 175 Degrees F |
| Opening Characteristic | Slow Opening |
| Includes Side Taps | Side Taps Not Included |
| Reducer Bushings Included | None |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Operating Temperature - Minimum | 0 Degrees F |
| Pressure Tap Connection Type | NPT |
| Port Connection Type | NPT |
| Sensing Type | Flame Sensor |
| Port Connection Gender | Female |
| Includes Pressure Regulator | Pressure Regulator Included |
| Includes Thermostat | Mechanical Thermostat Not Included |
Description

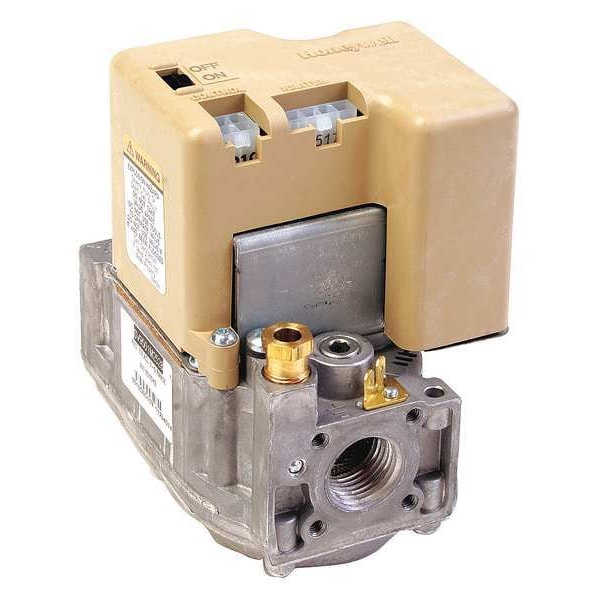

The Honeywell SV9502H2522 is a gas valve designed for use with furnaces. This slow-opening valve controls gas flow for intermittent pilot ignition systems, operating on 24 V and handling natural gas or LP with a BtuH capacity of 150,000 to 200,000.
