- Min. Wire Size (AWG): 14
- Boiler Output Voltage: Dry Contact, 24V AC, 1A
- Locked Rotor Amps @ 120V: 36 A
- Full Load Amps @ 120VAC: 12 A
- Resistive Amps @ 120V: 6 A
- Current Ratings @ Voltages: FLA: 12 A @ 120V AC; LRA: 36 A @ 120V AC
Specifications
| Part Number | SR501-OR-4 |
| Brand | Taco |
| Length | 8 in |
| Height | 3 in |
| Width | 12 in |
| Min. Wire Size (AWG) | 14 |
| Lead Length (Ft.) | Max 500 |
| Overall Height | 5 1/4 in |
| Overall Width | 4 1/4 in |
| Overall Length | 2 3/4 in |
| Includes | Control and (2) Sensors |
| Electrical Connections | 120V AC |
| Max. No. Zones | 1 |
| Agency Compliance | UL |
| Boiler Output Voltage | Dry Contact, 24V AC, 1A |
| Weight (Lbs.) | 2 lb |
| Locked Rotor Amps @ 120V | 36 A |
| Sensor | 10K ohm |
| Max. VA | 720 VA |
| For Use With | Boilers |
| Sensor Range | -30 Degrees to 200 Degrees F |
| Sensor Lead | 12 in |
| Auxiliary Contact Rating | 6A |
| Full Load Amps @ 120VAC | 12 A |
| Resistive Amps @ 120V | 6 A |
| Type | Pump |
| Control Range (F) | -30 Degrees to 40 Degrees |
| User Interface | DIP Switches |
| Item | Zone Switching Relay |
| Current Ratings @ Voltages | FLA: 12 A @ 120V AC; LRA: 36 A @ 120V AC |
Description

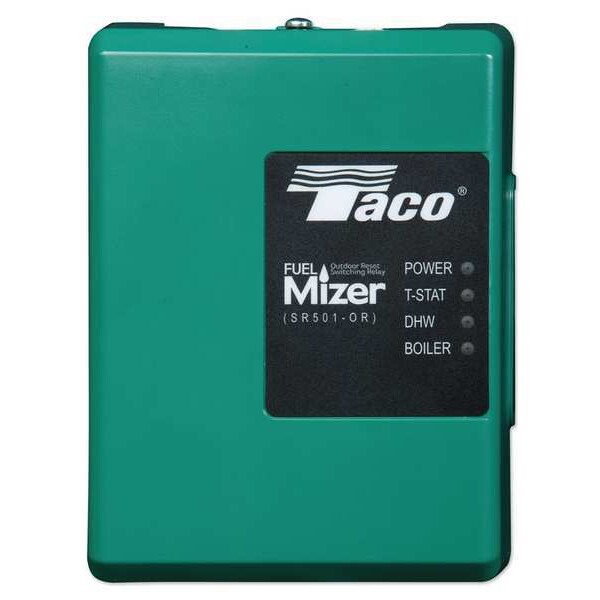

The Taco SR501-OR-4 is a switching relay with outdoor reset, including a control and two 10K ohm sensors. This type of relay controls boiler operation by adjusting the system temperature based on outdoor conditions. It operates on 120V AC with a dry contact boiler output of 24V AC at 1A and a locked rotor amp rating of 36A at 120V, and is designed for use with boilers.
