- HP: 1/2
- RPM Range: 3,001-3,600
- Nameplate RPM: 3,450
- Phase: Single
- Voltage: 115/230V AC
- Full Load Amps: 6.7/13.4
Specifications
| Part Number | SQ1052 |
| Brand | Century |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/2 |
| RPM Range | 3,001-3,600 |
| Motor Service Factor | 1.9 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 in |
| Height | 5 5/8 in |
| Body Dia. | 5.6 in |
| Length Less Shaft | 11 5/16 in |
| Overall Length | 12 3/16 in |
| Item | Pool Pump Motor |
| Nameplate RPM | 3,450 |
| Frame | 48Y |
| Motor Shaft Rotation | CCWSE |
| Phase | Single |
| Voltage | 115/230V AC |
| Motor Mounting Type | Face |
| Full Load Amps | 6.7/13.4 |
| Shaft | Threaded 1/2-20 UNF-2A RH |
| Motor Efficiency Group | Standard Efficient |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Finish | Black |
| Motor Application | Pump |
| Design | Two Compartment |
| Ins. Class | B |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC |
| Max. Ambient Temp. | 50 Degrees C |
| Hz | 60 Hz |
| Shaft Material | Stainless Steel |
| Motor Sub Application | Pool and Spa Pump |
| Standards | CSA, UL |
| Usable @ 208V | No |
| No. of Speeds | 1 |
| Duty Cycle | Continuous |
| Usable @ 200V | No |
| Weight | 19 lb |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Warranty | 2ACC7 |
Description

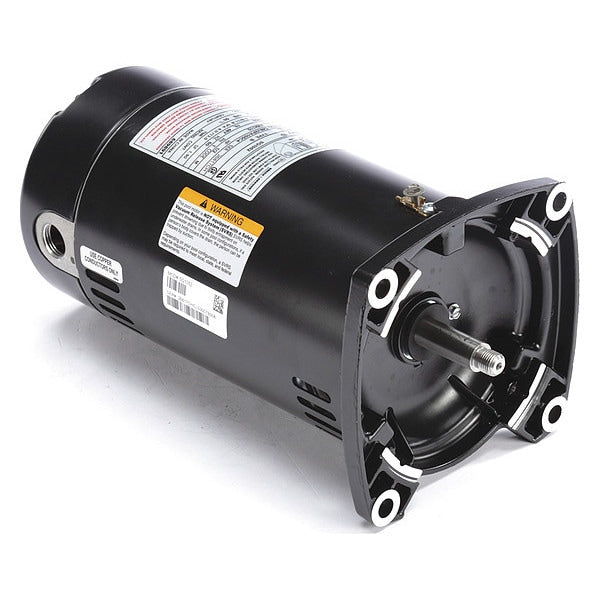

The Century SQ1052 is a 1/2 HP pool pump motor with an open dripproof enclosure. This single-phase, capacitor-start/run motor operates at 3,450 nameplate RPM and is available in 115/230V AC. It features a face mounting type with a 48Y frame.
