- HP: 7 1/2
- Nameplate RPM: 1,765
- Voltage: 208-230/460V
- Full Load Amps: 20.0-18.1/9.1 A
- RPM Range: 1,701-1,800
- Phase: Three
Specifications
| Part Number | S7P2A |
| Brand | U.S. Motors |
| HP | 7 1/2 |
| Nameplate RPM | 1,765 |
| Voltage | 208-230/460V |
| Motor Mounting Type | Rigid Base |
| Full Load Amps | 20.0-18.1/9.1 A |
| Length Less Shaft | 15 1/2 in |
| Overall Length | 18 7/8 in |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 3/8 in |
| Item | Motor |
| Frame | 213T |
| Motor Bearings | 6205-2Z-J/C3,6208-2Z-J/C3 |
| Motor Service Factor | 1.15 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| RPM Range | 1,701-1,800 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Application | General Purpose |
| Motor Shaft Rotation | CW/CCW |
| Hz | 60 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 91.7 % |
| Standards | CSA Certified, ENERGY cURus |
| CC Number | CC030A |
| NEMA Design | B |
| Motor Sub Application | Fan/Blower, Pump |
| Inverter Rated | Yes |
| Motor Thermal Protection | None |
| Weight | 90 lb |
| Duty Cycle | Continuous |
| Usable @ 208V | Yes |
| Bearing Protection | Double Shields |
| Inverter Rating | 20:1, 4:1 |
| Kw | 5.595 kW |
Description

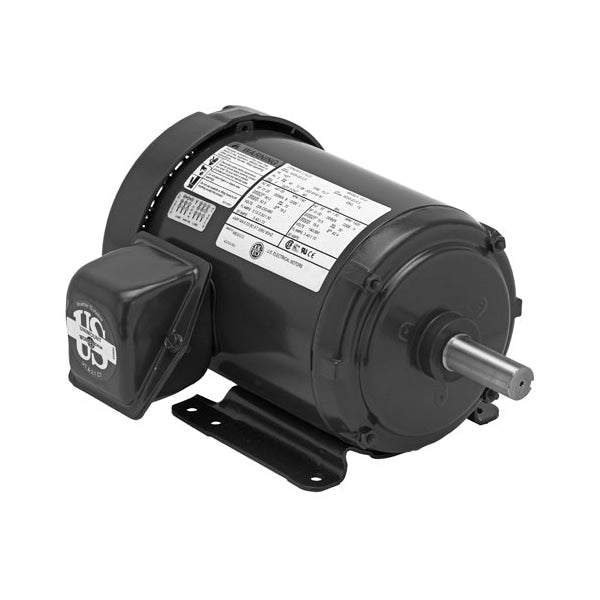

The U.S. Motors S7P2A is a 7 1/2 HP three-phase motor with a 213T frame. This totally enclosed fan-cooled motor operates at 1,765 RPM and is available in 208-230/460V with full load amps of 20.0-18.1/9.1 A. It features a rigid base mounting.
