- Voltage: 120
- HP: 1/2 hp
- Maximum Vent Pipe Diameter: 14 in
- Minimum Vent Pipe Diameter: 12 in
- Outlet Diameter: 12 in
- Inlet Diameter: 12 in
Specifications
| Part Number | RT1500 |
| Brand | Tjernlund Products |
| Inlet and Outlet Dia. | 11-15/16" |
| Type | Rooftop |
| Voltage | 120 |
| Depth | 18 1/2 in |
| HP | 1/2 hp |
| Height | 24 in |
| Vent Pipe Dia. | 12" or 14" |
| Width | 18 1/2 in |
| Overall Width | 18 1/2 in |
| Maximum Vent Pipe Diameter | 14 in |
| Overall Height | 22 1/2 in |
| Minimum Vent Pipe Diameter | 12 in |
| Outlet Diameter | 12 in |
| Overall Depth | 18 1/2 in |
| Inlet Diameter | 12 in |
| Item | Rooftop Inducer |
| Construction Material | Coated Galvanized Steel |
| Amps | 5.8A |
| Includes | Fan Proving Switch |
| Remarks | View Catalog Page for Selection Criteria |
| Agency Compliance | CAN/CSA B255M81, UL378, UL705 |
| Application | Furnaces, Oil Heating |
| Watts | 373W |
| RPM | 1550 |
| Class | 1 |
| CFM @ 0.000-In. SP | 1700 |
| Standards | cETL Listed |
| Maximum Heater BTU Input for Oil Appliance | 3,700,000 BtuH |
| For Fuel Type | Natural Gas, Oil |
| Outlet Shape | Round |
| Nameplate Voltage | 120V AC |
| Wheel Material | Stainless Steel |
| Maximum Heater BTU Input for Gas Appliance | 2,700,000 BtuH |
| Housing Material Finish | Galvanized |
| Current | 5.8 A |
| Housing Material | Aluminized Steel |
| Blower Type | Induced Draft Blower |
Description

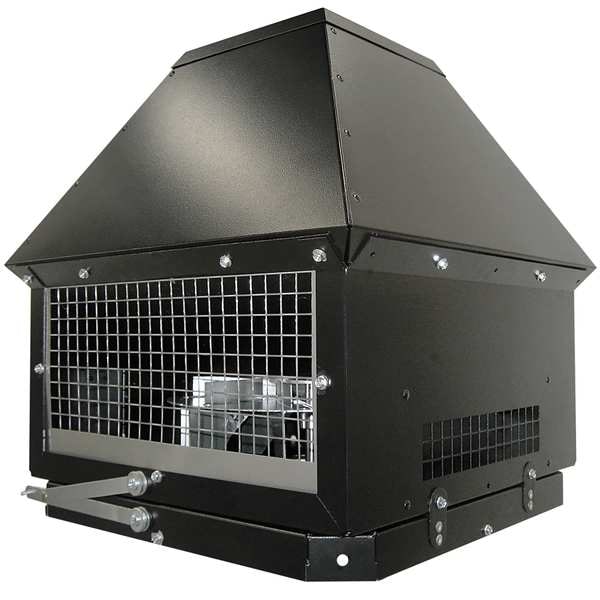

The Tjernlund Products RT1500 is a 1/2 hp, 120V rooftop inducer motor constructed of coated galvanized steel. This draft inducer motor creates the necessary airflow to exhaust combustion gases from the appliance. It includes a fan proving switch and is used with furnaces and oil heating equipment.
