- Actuator Style: Double Rack
- Maximum Output Torque: 2.5 N-m
- Rotation Angle: 180 Degrees
- Bore Diameter: 19.1 mm
- Maximum Operating Pressure: 0.69 MPa
- Shaft Diameter: 85.73 mm
Specifications
| Part Number | RR-28M-180 |
| Brand | DE-STA-CO |
| Item | Rotary Actuator |
| Actuator Style | Double Rack |
| Maximum Output Torque | 2.5 N-m |
| Rotation Angle | 180 Degrees |
| Bore Diameter | 19.1 mm |
| Maximum Operating Pressure | 0.69 MPa |
| Shaft Diameter | 85.73 mm |
| Shaft Length | 3.18 mm |
| Inlet Size | 5/16 in |
| Air Inlet Type | NPT |
| Cushion Type | None |
| Weight | 0.65 kg |
| Maximum Operating Temperature | 80 Degrees C |
| Minimum Operating Pressure | 29.99 psi |
| Minimum Operating | Temperature -35 Degrees C |
| For Fluid Type | Air |
| System of Measurement | Metric |
Description

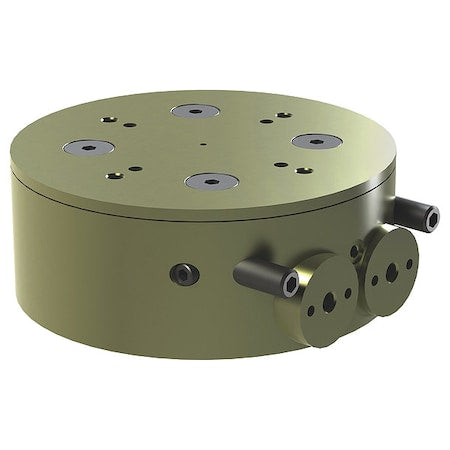

The DE-STA-CO RR-28M-180 is a double rack rotary actuator for air with a rotation angle of 180 degrees. It has a maximum output torque of 2.5 N-m, a bore diameter of 19.1 mm, and a maximum operating pressure of 0.69 MPa. The actuator weighs 0.65 kg and has a 5/16 in NPT air inlet.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
