- Coil Voltage: 24V AC
- Contact Material: Silver Alloy
- Horsepower @ 120V AC: Not Rated
- Input Voltage: 26.4V AC
- Frequency: 50/60 Hz
- Maximum Switching Voltage: 250V
Specifications
| Part Number | RPM22B7 |
| Brand | Schneider Electric |
| CAD Drawing | 2D Drawing (.pdf) |
| Mounting Style | Plug-In |
| Electrical Connection | Quick Connect |
| Base Shape | Square |
| Number of Pins | 8 |
| Coil Voltage | 24V AC |
| Overall Height - Relay | 2.13 in |
| Body Depth | 1.54 in |
| Overall Depth | 1.82 in |
| Body Height | 1.06 in |
| Flat Pin Width | 0.18 in |
| Body Width | 0.83 in |
| Item | General Purpose Relay |
| Current Rating | 15 A |
| Contact Form | DPDT |
| Contact Rating (AC) | 15 A @ 250V |
| Contact Rating (DC) | 15 A @ 28V |
| Standards | CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed |
| Features | Plug In Protection Module to Protect Against Electrical Spikes |
| Socket Code | D |
| Socket | Mfr. No. RPZF2 |
| Status Indicator | LED and Mechanical Flag |
| Power Consumption - Relay | 1.1 VA |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Contact Material | Silver Alloy |
| For Use With | Hard-Wired Logic Automated Systems |
| Horsepower @ 120V AC | Not Rated |
| Response Time | 20 msec |
| Coil Resistance | 177 ohm |
| Input Voltage | 26.4V AC |
| IP Rating | IP40 |
| Frequency | 50/60 Hz |
| Weight | 1.28 oz |
| Push-To-Test Method | Lockable |
| Maximum Switching Voltage | 250V |
| Pin Shape | Flat |
| Mechanical Operating Durability | 10,000,000 |
| Electrical Operating Durability | 100,000 |
| Power Consumption | 1.1 VA |
| Sealing | Enclosed |
| Series | Harmony(TM) RPM Series |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Motor Rated | Not Rated - Not Rated |
| Minimum Operating Temperature | -40 Degrees F |
| Minimum Switching Current | 10 mA |
| Dielectric Strength | 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic |
| Maximum Operating Temperature | 131 Degrees F |
| Horsepower @ 240V AC | Not Rated |
| Switching Power | Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V |
| Operating Time | 20 ms at nominal voltage |
| Switching Voltage | 250 V IEC |
| Protection Category | RT I |
| Control Circuit Voltage | 24 V AC 50/60 Hz |
| Conventional Enclosed Thermal Current | 15 A -40 to 131°F (-40 to 55°C) |
| Contact Type and Composition | 2 C/O |
| Operating Rate | Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load |
| Control Type | Lockable test button |
| Rated Impulse Withstand Voltage | 4 kV 1.2/50 µs |
| Average Coil Resistance | 177 Ohm at 68°F (20°C) +/- 15% |
| Test Levels | Level A group mounting |
| Rated Operational Voltage Limits | 19.2 to 26.4 V AC |
| Rated Insulation Voltage | 250 V IEC; 300 V CSA; 300 V UL |
| Degree Of Protection | IP40 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40 to 185°F (-40 to 85°C) |
| Resistive Load Current | 15 A 250 V AC; 15 A 28 V DC |
| Operating Position | Any position |
| Device Presentation | Complete product |
| Average Coil Consumption in VA | 1.1 60 Hz |
| Drop-Out Voltage Threshold | Greater than or Equal to 0.15 Uc AC |
| Shock Resistance | 15 gnin operation; 30 gnnot operating |
| Utilisation Coefficient | 0.2 |
| Ambient Air Temperature For Operation | -40 to 131°F (-40 to 55°C) |
| Vibration Resistance | 3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 5 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating |
| Maximum Switching Capacity | 3750 VA; 420 W |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Series Name | Power |
| Product Certifications | EAC; UL; CSA |
| Pollution Degree | 3 |
| CAD Available | Yes |
Description

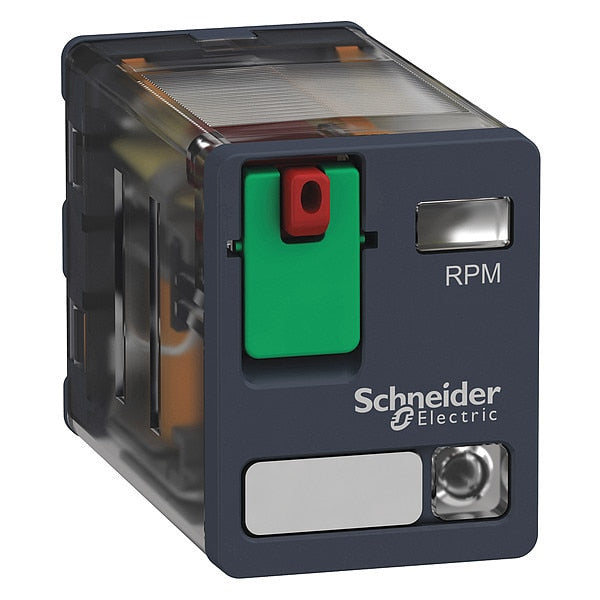

The RPM22B7 is a Schneider Electric general purpose relay. This plug-in relay uses a 24V AC coil and switches circuits with a current rating of 15 A at up to 250V AC or 28V DC. It features eight pins with quick-connect terminals and is designed to accept a plug-in protection module to guard against electrical spikes. The relay complies with CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, and UL Listed standards.
