- Voltage: 120V AC
- Diameter: 7/8 in
- Voltage (AC): 120 V AC
- Common Port Connection Size: 1/4 in
- Normally Open Port Connection Size: 1/8 in
- Normally Closed Port Connection Size: 1/4 in
Specifications
| Part Number | RP419A1057 |
| Brand | Honeywell |
| Voltage | 120V AC |
| Diameter | 7/8 in |
| Standards | UL Listed |
| Voltage (AC) | 120 V AC |
| Includes | Junction Box |
| Height | 2 7/8 in |
| Depth | 1 1/4 in |
| Overall Length | 2 7/8 in |
| Width | 3 13/16 in |
| Overall Width | 3 13/16 in |
| Electrical Lead Length | 18 in |
| Overall Depth | 1 1/4 in |
| Common Port Connection Size | 1/4 in |
| Normally Open Port Connection Size | 1/8 in |
| Normally Closed Port Connection Size | 1/4 in |
| Item | Solenoid Air Valve |
| Type | Electric Pneumatic |
| Application | Pneumatically Operated Devices |
| Air Connections | Barb for 1/4 O.D Plastic Tubing |
| Control Type | Air |
| Capacity | 0.42 SCFM at 20 psi Supply with 1 psi Pressure Drop |
| Pressure Range | 0 to 30 psi |
| Construction | Cover and Case: Cold, Rolled Steel, Valve Body: Die Cast Aluminum |
| Agency Compliance | UL |
| Control Range | 0 to 20 psi |
| Max. Safe Air PSI | 50 psi |
| Ambient Temp. Range (F) | 0 to 100 |
| Mounting | Surface Mounted |
| Operating Temperature - Maximum | 140 Degrees F |
| Operating Pressure - Maximum | 30 psi |
| Normally Open Port Connection Type | NPT |
| Common Port Connection Gender | Male |
| Enclosure Type | Junction Box |
| Normally Closed Port Connection Gender | Male |
| Common Port Connection Type | Barbed Hose |
| Body Pattern | Three-Way |
| Normally Closed Port Connection Type | Barbed Hose |
| Normally Open Port Connection Gender | Female |
| Cover Material | Steel |
| Body Material | Die Cast Aluminum |
| Mounting Style | Surface Mount |
| Valve Action | Normally Closed, Normally Open |
| Frequency | 60 Hz |
| Electrical Connections | Soldered |
| Operating Temperature - Minimum | 32 Degrees F |
Description

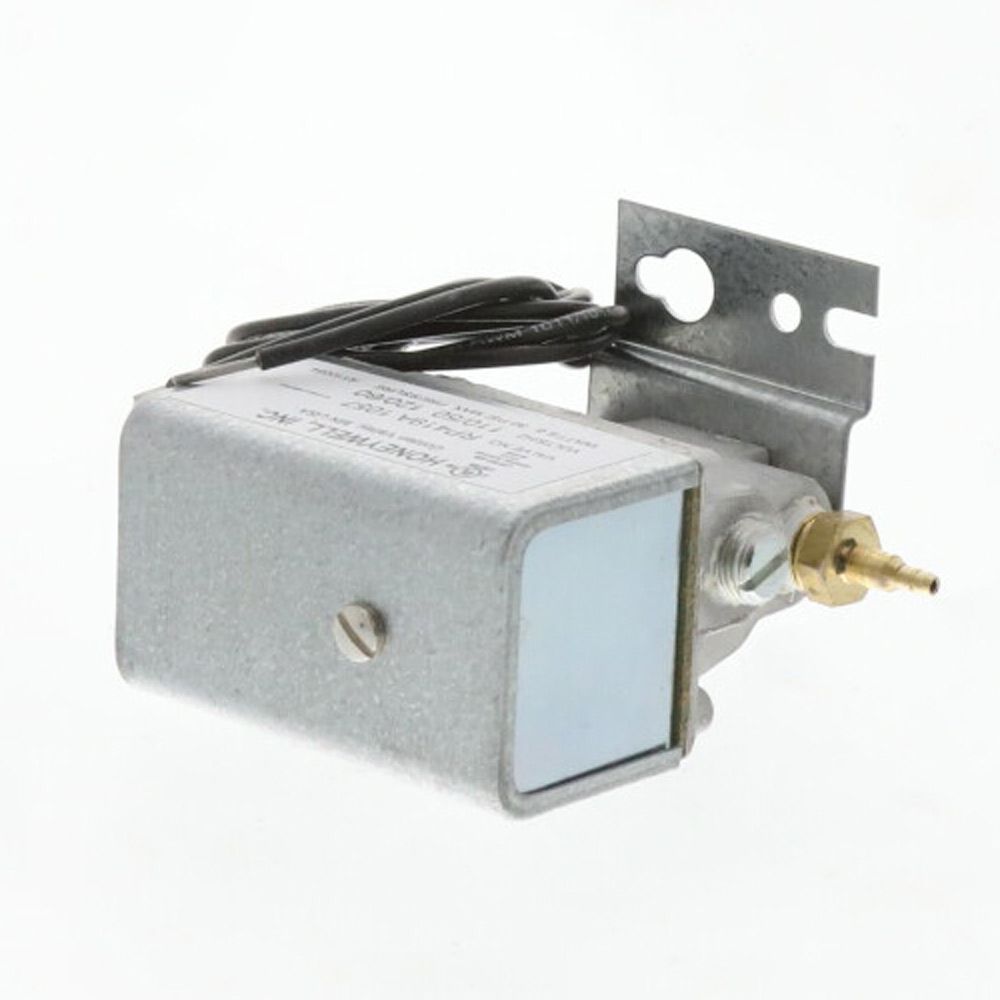

The Honeywell RP419A1057 is a solenoid air valve. This type of valve uses an electromagnetic coil to open or close a port, controlling the flow of air. This 120V AC unit is UL Listed and includes a junction box.
