- Input or Control Voltage: 208 to 480V AC
- Over Voltage: Adjustable 2 to 20% of Line Voltage Setting
- Under Voltage: 193 to 484V AC
- Phase Loss Sensitivity: Yes
- Phase Loss Time Delay: Instantly
- Phase Reversal: Yes
Specifications
| Part Number | RM35TF30 |
| Brand | Schneider Electric |
| Input or Control Voltage | 208 to 480V AC |
| AC Contact Rating - Relay | 3A @ 250V, 5A @ 24V |
| DC Contact Rating - Relay | 1.00A @ 24V |
| Number of Pins - Relay | 12 |
| Mounting - Relay | DIN Rail |
| Body Height - Relay | 2.82 in |
| Body Depth - Relay | 3.54 in |
| Overall Height - Relay | 2.82 in |
| Body Width - Relay | 1.38 in |
| Body Width | 1.38 in |
| Overall Depth | 2.84 in |
| Body Depth | 2.84 in |
| Body Height | 3.54 in |
| Item | Phase Monitor Relay |
| Contact Form - Relay | DPDT |
| Over Voltage | Adjustable 2 to 20% of Line Voltage Setting |
| Under Voltage | 193 to 484V AC |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | Instantly |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | Instantly |
| Phase Unbalance | 5 to 15% |
| Phase Unbalance Time Delay | 0.1 to 10.0 sec |
| Restart | Auto |
| Restart Time Delay | 1.5 sec |
| Input or Control Voltage Range | 208 to 480VAC |
| Pick Up Range | 190 to 500VAC |
| Voltage Unbalance | 2 |
| Drop-Out Range | 75% to 95% |
| Item - Relay | Phase Monitor Relay |
| Phase | 3 |
| Power Rating | 1250 |
| Pins | 12 |
| Trip Delay | 0.10 to 10 sec. |
| Contact Amp Rating (Resistive) | 5 |
| Contact Form | DPDT |
| Input Voltage | 208 to 480V AC |
| Base Type | DIN Rail |
| Number of Contacts | 2 |
| Standards | C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed |
| Maximum Switching Current | 5 A |
| Mechanical Operating Durability | 30,000,000 |
| Minimum Switching Current | 10 mA |
| Housing Material | Plastic |
| Maximum Operating Temperature | 122 Degrees F |
| Electrical Operating Durability | 100,000 |
| Maximum Switching Capacity | 1,250 VA |
| Weight | 4.64 oz |
| Maximum Switching Voltage | 250V AC/DC |
| Current Rating | 5 A |
| Mounting Style | DIN Rail |
| Contact Rating (AC) | 3 A @ 250V, 5 A @ 24V |
| Minimum Operating Temperature | -4 Degrees F |
| Frequency | 50/60 Hz |
| Base Shape | Square |
| Undervoltage | 193 to 484V AC |
| Overvoltage | Adjustable 2 to 20% of Line Voltage Setting |
| Power Consumption | 1,250 VA |
| Monitored Parameters | Asymmetry, Overvoltage, Phase Failure, Phase Sequence, Undervoltage |
| Number of Pins | 12 |
| Contact Rating (DC) | 1.00 A @ 24V |
| IP Rating | IP30 |
Description

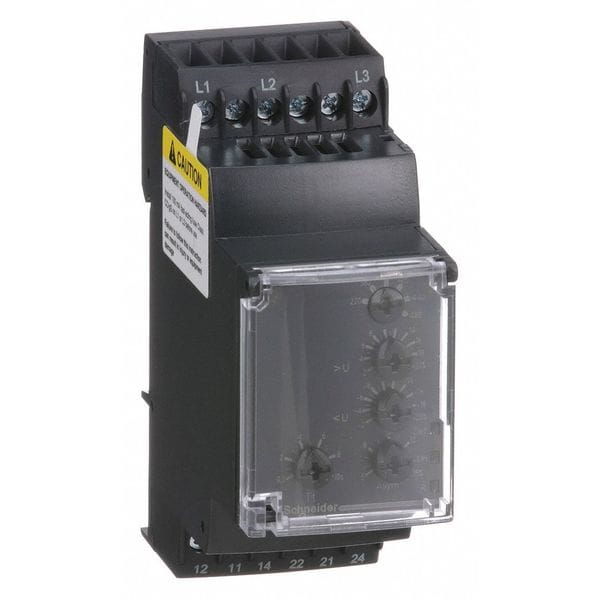

The RM35TF30 is a Schneider Electric three-phase monitor relay. This relay monitors three-phase power systems for phase loss, phase reversal, and over/under voltage conditions, with an adjustable over-voltage setting of 2 to 20% of the line voltage setting and an under-voltage range of 193 to 484V AC. It has a control voltage of 208 to 480V AC and features DPDT contacts rated at 3A @ 250V AC, 5A @ 24V AC, and 1.00A @ 24V DC.
