- Phase Unbalance: No
- Under Voltage: No
- Phase Loss Sensitivity: No
- Over Voltage: No
- Phase Reversal: No
- Input or Control Voltage: 183 to 528V AC
Specifications
| Part Number | RM17TU00 |
| Brand | Schneider Electric |
| Item - Relay | Phase Monitor Relay |
| Coil Volts | 250VAC/DC |
| AC Contact Rating - Relay | 5A @ 250V |
| DC Contact Rating - Relay | 7A @ 30V |
| Contact Form - Relay | SPDT |
| Body Height - Relay | 2.84 in |
| Body Width - Relay | 0.69 in |
| Body Depth - Relay | 3.54 in |
| Body Height | 3.54 in |
| Body Width | 0.69 in |
| Overall Depth | 2.84 in |
| Body Depth | 2.84 in |
| Width | 17.5 mm |
| Mounting - Relay | Plug In |
| Item | Relay |
| Phase Unbalance | No |
| Under Voltage | No |
| Phase Loss Sensitivity | No |
| Over Voltage | No |
| Phase Reversal | No |
| Input or Control Voltage | 183 to 528V AC |
| Base Type - Plug In Relay | Octal |
| Restart | Auto |
| Standards | C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed |
| Response Time | < 200 ms (in the event of a fault) |
| Contact Form | SPDT |
| Mounting Style | DIN Rail |
| Current Rating | 5 A |
| Electrical Operating Durability | 100,000 |
| Maximum Operating Temperature | 122 Degrees F |
| Minimum Operating Temperature | -4 Degrees F |
| Weight | 4.64 oz |
| Number of Pins | 6 |
| Overvoltage | No |
| Maximum Switching Current | 5 A |
| Contact Rating (AC) | 5 A @ 250V |
| Maximum Switching Voltage | 250V AC/DC |
| Frequency | 50/60 Hz |
| IP Rating | IP30 |
| Base Shape | Octal |
| Minimum Switching Current | 10 mA |
| Housing Material | Plastic |
| Monitored Parameters | Phase Failure, Phase Sequence, Undervoltage |
| Contact Rating (DC) | 7 A @ 30V |
| Power Consumption | 1,250 VA |
| Maximum Switching Capacity | 1,250 VA |
| Restart Time Delay | 1.5 sec |
| Mechanical Operating Durability | 30,000,000 |
| Input Voltage | 183 to 528V AC |
| Output Contacts | 1 C/O |
| Utilisation Category | AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 |
| Nominal Output Current | 5A |
| Product Or Component Type | 3-phase control relay |
| [Ui] Rated Insulation Voltage | 400 V IEC 60664-1 |
| Power Consumption In Va | 0-22 VA 400 V AC 50 Hz |
| Repeat Accuracy | 0.5 % input and measurement circuit || 3 % time delay |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Control Circuit Frequency | 50...60 Hz +/- 10 % |
| Pollution Degree | 3 IEC 60664-1 |
| Contacts Type And Composition | 1 C/O |
| Operating Position | any position without derating |
| Supply Frequency | 50/60 Hz +/- 10 % |
| Shock Resistance | 15 gn 11 ms IEC 60255-21-1 |
| Reset Time | 1500 ms time delay |
| Control Circuit Voltage Limits | 12 % + 10 % Un |
| Mechanical Durability | 30000000 cycles |
| Measurement Error | < 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation |
| Dielectric Test Voltage | 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1 |
| Electrical Durability | 100000 cycles |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Threshold Adjustment Voltage | -2...-12 % in the range 208 V AC || -2...-17 % in the range 220 V AC || 2...20 % of Un selected || +2...+17 % in the range 480 V AC |
| Mounting Support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Relative Humidity | 95-95 % 55-55°C IEC 60068-2-30 |
| Relay Name | RM17TU |
| Overvoltage Category | III IEC 60664-1 |
| Phase Failure Sensitivity | 0.7 Un |
| Hysteresis | 2-2 % |
| [Uc] Control Circuit Voltage | 208...480 V |
| Time Delay Type | adjustable 0.1...10 s, +/- 10 % of the full scale value |
| Non-Dissipating Shock Wave | 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5 |
| Product Certifications | GL || GOST || UL || C-tick || CSA |
| Operating Rate | <= 360 operations/hour full load |
| Supply Voltage Limits | 183-528 V AC |
| Insulation Resistance | > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1 |
| Relay Type | multifunction control relay |
| Vibration Resistance | 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1 |
| Ambient Air Temperature For Operation | -20-50°C |
| Measurement Range | 208...480 V voltage AC |
| Run-Up Delay At Power-Up | 650 ms |
| Maximum Measuring Cycle | 150 ms measurement cycle as true rms value |
| Ip Degree Of Protection | IP20 IEC 60529 terminals) || IP30 IEC 60529 casing) |
| Switching Capacity In Va | 1250 VA |
| Adjustment Of Asymmetry Threshold | 5...15 % of Un selected |
| Marking | CE |
| Local Signalling | for power ON LED (green) || for relay ON LED (yellow) |
| Relay Monitored Parameters | undervoltage detection || phase sequence || phase failure detection |
| Voltage Range | 208...480 V phase to phase |
| Product Specific Application | for 3-phase supply |
| Electromagnetic Compatibility | emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2 |
| Measurement Voltage Limits | 183-528 V AC |
| Ambient Air Temperature For Storage | -40-70°C |
Description

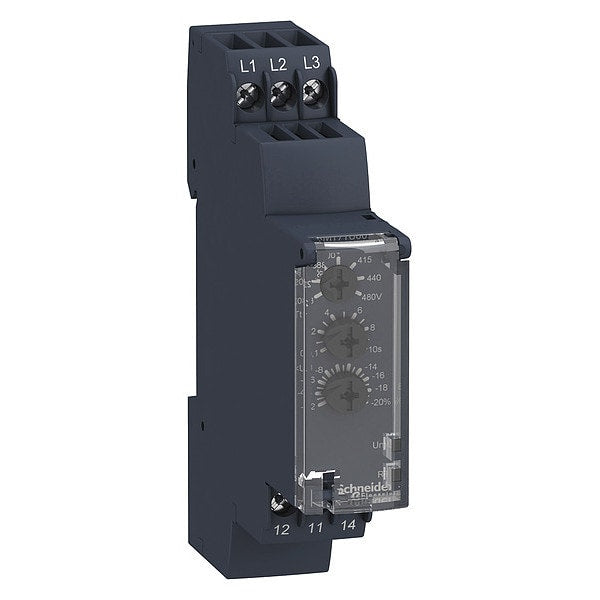

The Schneider Electric RM17TU00 is a phase monitor relay. This type of relay monitors voltage conditions in a three-phase system. It has an AC contact rating of 5A at 250V and a DC contact rating of 7A at 30V.
