- Operating Temperature: -30 to 140° F
- Max Sense Voltage: 600 Vac
- Switching Voltage Range: 30 Vac/dc
Specifications
| Part Number | RIBXGA-SCAL |
| Brand | Functional Devices-Rib |
| Type | Split Core |
| Width | 2 |
| Operating Temperature | -30 to 140° F |
| Series | RIBXG Series |
| Item | Self Adjustable Current Switch |
| Mounting/Installation | Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place |
| Approvals | UL Listed, C-UL, CE, UL916, (All models) |
| Threshold | Self-Cal. |
| Max Sense Voltage | 600 Vac |
| Sensor Contact | Solid State Contact |
| Sensor Contact Status | Current below threshold: Open Current above threshold: Closed |
| Sensor Contact Type | Solid State Switch SPST |
| Maximum Switching Current | .4 Amps Max |
| Sensing Range | 3-150 Amp |
| Switching Voltage Range | 30 Vac/dc |
| Sensor Contact Termination | Wht/Yel 16˝ 18 AWG Wire Leads |
| Humidity Range | 5 to 95% (noncondensing) |
Description

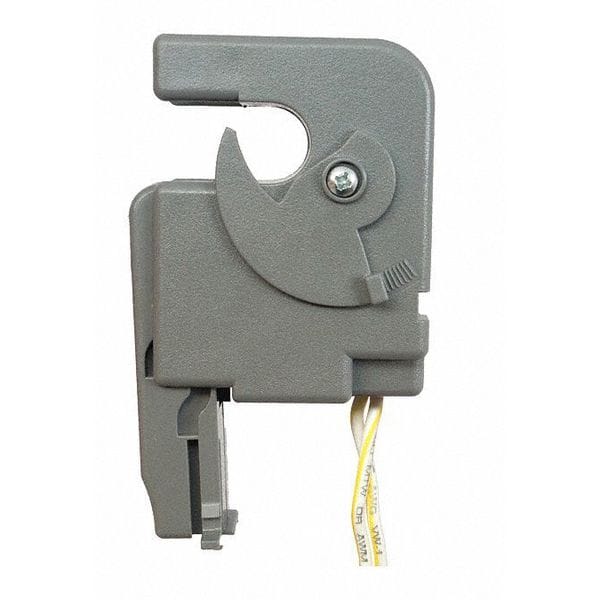

The Functional Devices-Rib RIBXGA-SCAL is a self-adjustable current switch from the RIBXG Series. This split-core sensor monitors AC current from 3 to 150 amps, with a solid-state SPST contact that opens when current is below the threshold and closes when current is above the threshold, rated for a maximum sense voltage of 600 Vac.
