- Nipple Size: 0.50 in NPT
- Contact Material: Silver Alloy
- Contact Amp Rating (Resistive): 20A @ 277VAC, 5A @ 480VAC
- Hz - Electrical: 50 Hz, 60 Hz
- Hz: 50/60
- HP @ 120V: 1 hp
Specifications
| Part Number | RIBW24B-EN3 |
| Brand | Functional Devices-Rib |
| Item - Relay | Wireless Relay and Transmitter |
| AC Contact Rating - Relay | 20A @ 277V, 5A @ 480V |
| Contact Form - Relay | SPDT |
| Mounting - Relay | 1/2 in Nipple, Surface |
| Power Consumption - Relay | 1.9 W, 3.3 VA |
| Height | 2.3" |
| Depth | 1.8" |
| Width | 3.2" |
| Body Height - Relay | 2.3 in |
| Body Width - Relay | 3.2 in |
| Body Depth - Relay | 1.8 in |
| Dimensions | 2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple |
| Nipple Size | 0.50 in NPT |
| Body Height | 2.3 in |
| Body Depth | 1.8 in |
| Body Width | 3.2 in |
| Overall Depth | 1.8 in |
| Coil Volts | 24V AC/DC |
| Contact Material | Silver Alloy |
| Features | Dry Contact Input, Wireless Communication |
| Wireless Range | 50 to 150 ft |
| Number of Pins - Relay | 7 |
| Contact Amp Rating (Resistive) | 20A @ 277VAC, 5A @ 480VAC |
| Hz - Electrical | 50 Hz, 60 Hz |
| Hz | 50/60 |
| Item | Wireless Relay and Transmitter |
| Number of Contacts | 2 |
| Standards | RoHS Compliant, UL Listed |
| Communication Method | Wireless 902 MHz |
| HP @ 120V | 1 hp |
| Contact Amp Rating (Inductive) | 770 VA Pilot Duty @ 120VAC, 1110 VA Pilot Duty @ 277VAC |
| HP @ 240V | 2 hp |
| Contact Form | SPDT |
| Maximum Operating Temperature | 140 Degrees F |
| Minimum Operating Temperature | -30 Degrees F |
| Current Rating | 20 A |
| Horsepower @ 120V AC | 1 hp |
| Input Voltage | 24V AC/DC |
| NEMA Enclosure Rating | 1 |
| Coil Voltage | 24V AC/DC |
| Power Consumption | 1.9 W, 3.3 VA |
| Contact Rating (AC) | 10 A @ 120V (NO), 16 A @ 277V (NO), 20 A @ 277V |
| Wire Rating | 600V |
| Mechanical Operating Durability | 10,000,000 |
| Switch Modes | Alarm, Delay, Momentary, Repeater, Rocker, Toggle |
| For Use With | Enocean 902 MHz Switches/Transmitters |
| Frequency | 60 Hz |
| Operating Current | 20 A |
| Number of Pins | 7 |
| Horsepower @ 240V AC | 2 hp |
| Mounting Style | Surface |
| Override Switch | No |
| Power Input Ratings | 69 mA @ 24 Vdc (RIBW24B-EN3) 139 mA @ 24 Vac (RIBW24B-EN3) |
| Humidity Range | 5 to 95% (noncondensing) |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Wires | 16", 600V Rated |
| Operating Temperature | -30 to 140° F |
| No. of Relays & Contact Type | One (1) SPDT Continuous Duty Coil |
| Contact Ratings | 20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 770 VA Pilot Duty @ 120 Vac 1,110 VA Pilot Duty @ 277 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac |
| Agency Compliance | FCCID: SZV-TCM320U IC: 5713A-TCM320U |
| Built-in Switch Modes | Alarm, Repeater, Delay, Rocker, Momentary, and Toggle |
| Gold Flash | No |
| Approvals | UL Listed, UL916, C-UL |
| Receiver Sensitivity | -93 dBm typical |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Conducted Power | 5 mW typical |
| Red LED | Relay Status / Learn Mode Status (Flashing) |
Description

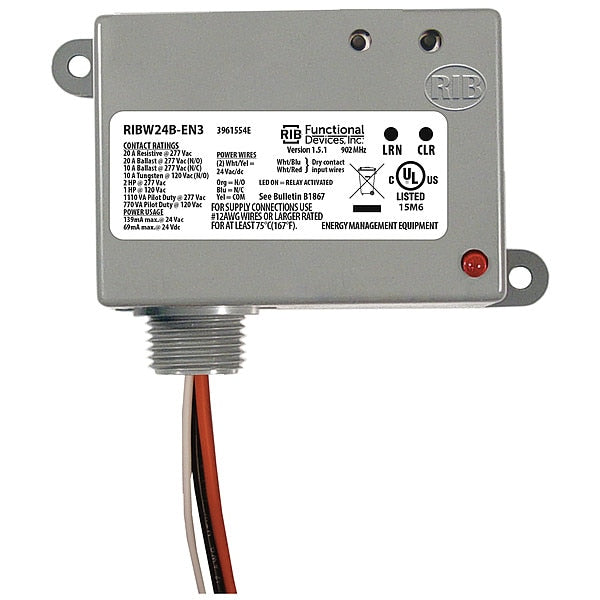

The Functional Devices-Rib RIBW24B-EN3 is a wireless relay and transmitter with a silver alloy contact material. This type of relay switches electrical loads via a dry contact input and wireless communication. It is rated for 20A at 277VAC and 5A at 480VAC, operating on 50/60 Hz power.
