- Nipple Size: 0.50 in NPT
- HP @ 240V: 1/6 hp, 1/3 hp
- HP @ 120V: 1/6 hp, 1/3 hp
- Hz: 50/60
- Contact Material: Gold Flashed Silver Cadmium Oxide
- Hz - Electrical: 50 Hz, 60 Hz
Specifications
| Part Number | RIBL4C |
| Brand | Functional Devices-Rib |
| Item - Relay | Prewired Relay |
| Application - Prewired Relay | Pilot Duty |
| Coil Volts | 10 to 30V AC/DC |
| AC Contact Rating - Relay | 10A @ 277V |
| DC Contact Rating - Relay | 10A @ 28V |
| Dimensions | 4.0"H x 4.0"W x 1.8"D |
| Body Depth - Relay | 1.8 in |
| Body Width - Relay | 4.0 in |
| Lead Length | 16 in |
| Overall Height - Relay | 4.0 in |
| Body Height - Relay | 4.0 in |
| Nipple Size | 0.50 in NPT |
| Body Depth | 1.8 in |
| Body Width | 4 in |
| Overall Depth | 1.8 in |
| Body Height | 4 in |
| Contact Form - Relay | (1) SPDT, (3) SPST-NO |
| Mounting - Relay | 1/2 in Nipple, Surface |
| Power Consumption - Relay | 0.1 to 0.6W, 0.3 to 1.6VA |
| HP @ 240V | 1/6 hp, 1/3 hp |
| Application | Pilot |
| Standards | CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed |
| HP @ 120V | 1/6 hp, 1/3 hp |
| Hz | 50/60 |
| Contact Material | Gold Flashed Silver Cadmium Oxide |
| Hz - Electrical | 50 Hz, 60 Hz |
| Item | Enclosed Pre-Wired Relay |
| NEMA Enclosure Type | 1 |
| Indicator Type | LED |
| Contact Form | SPDT, 3PST-NO |
| Contact Amp Rating (Resistive) | 10A @ 277VAC, 10A @ 28VDC |
| Features | 1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Pilot Duty |
| Response Time | 20 msec |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Current Rating | 10 A |
| Contact Rating (DC) | 10 A @ 28V |
| Minimum Operating Temperature | -30 Degrees F |
| Frequency | 50/60 Hz |
| Mechanical Operating Durability | 10,000,000 |
| NEMA Enclosure Rating | 1 |
| Maximum Operating Temperature | 140 Degrees F |
| Contact Rating (AC) | 10 A @ 277V |
| Sealing | Enclosed |
| Horsepower @ 120V AC | 1/6 hp |
| Coil Voltage | 10-30V AC/DC |
| Status Indicator | LED Indicator |
| Mounting Style | Surface |
| Operating Current | 10 A at 10 to 30V AC/DC |
| Input Voltage | 10 to 30V AC/DC |
| Horsepower @ 240V AC | 1/6 hp |
| Relay Status | LED On - Activated |
| Contact Ratings | 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C) |
| Override Switch | No |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Humidity Range | 5 to 95% (noncondensing) |
| Operate Time | 20ms |
| No. of Relays & Contact Type | Three (3) SPST + One (1) SPDT Continuous Duty Coil (RIBL4C) |
| Gold Flash | Yes |
| Coil Current | 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc |
| Operating Temperature | -30 to 140° F |
| Coil Voltage Input | 10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc |
| Approvals | UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Wires | 16", 600V Rated |
Description

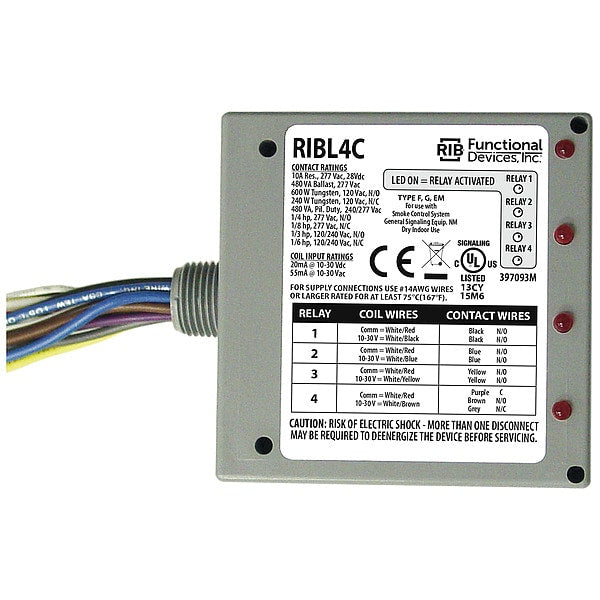

The Functional Devices-Rib RIBL4C is a prewired relay for wiring and connector applications. This enclosed relay provides pilot duty switching with three SPST-NO and one SPDT contact configurations, rated at 10A at 277V AC and 10A at 28V DC, with horsepower ratings of 1/6 hp and 1/3 hp at both 120V and 240V. It is CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, and UL Listed.
