- Nipple Size: 0.50 in NPT
- Hz - Electrical: 50 Hz, 60 Hz
- HP @ 240V: 2 hp
- Hz: 50/60
- HP @ 120V: 1 hp
- Contact Amp Rating (Resistive): 20A @ 300VAC, 20A @ 28VDC
Specifications
| Part Number | RIB02P |
| Brand | Functional Devices-Rib |
| Item - Relay | Prewired Relay |
| Application - Prewired Relay | Power |
| AC Contact Rating - Relay | 20A @ 300V |
| DC Contact Rating - Relay | 20A @ 28V |
| Contact Form - Relay | DPDT |
| Body Depth - Relay | 1.8 in |
| Nipple Size | 0.50 in NPT |
| Body Width - Relay | 4.0 in |
| Lead Length | 16 in |
| Body Height - Relay | 4.0 in |
| Overall Height - Relay | 4.0 in |
| Dimensions | 4.0"H x 4.0"W x 1.8"D |
| Body Depth | 1.8 in |
| Body Height | 4 in |
| Body Width | 4 in |
| Overall Depth | 1.8 in |
| Wire Length | 16" (40.6 cm) |
| Coil Volts | 208 to 277V AC |
| Mounting - Relay | 1/2 in Nipple, Surface |
| Power Consumption - Relay | 21.8 to 29.1VA |
| Item | Enclosed Pre-Wired Relay |
| Hz - Electrical | 50 Hz, 60 Hz |
| Standards | CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed |
| HP @ 240V | 2 hp |
| Application | Power |
| Hz | 50/60 |
| HP @ 120V | 1 hp |
| Contact Form | DPDT |
| Contact Amp Rating (Resistive) | 20A @ 300VAC, 20A @ 28VDC |
| Features | 1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Power Relay |
| Indicator Type | LED |
| Response Time | 18 msec |
| NEMA Enclosure Type | 1 |
| Contact Material | Gold Flashed Silver Cadmium Oxide |
| Mechanical Operating Durability | 10,000,000 |
| Status Indicator | LED Indicator |
| Horsepower @ 120V AC | 1 hp |
| Minimum Operating Temperature | -30 Degrees F |
| Contact Rating (AC) | 15 A @ 600V, 20 A @ 277 to 480/300V |
| Maximum Operating Temperature | 140 Degrees F |
| NEMA Enclosure Rating | 1 |
| Sealing | Enclosed |
| Coil Voltage | 208-277V AC |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Contact Rating (DC) | 20 A @ 28V |
| Input Voltage | 208 to 277V AC |
| Mounting Style | Surface |
| Operating Current | 20 A at 208 to 277V AC |
| Current Rating | 20 A |
| Frequency | 50/60 Hz |
| Horsepower @ 240V AC | 2 hp |
| Housing Rating | NEMA 1 |
| Relay Status | LED, ON - relay activated |
| Mount | DIN Rail Mount |
| Life Rating | 10 million cycles minimum mechanical |
| Contact Type | 1-DPDT |
| Type | Plastic Box |
| Conduit Hub | 1/2" NPT, 3/4" NPT |
| Contact Rating | 30A |
| Accessory | Gold Flash |
| Operating Temperature | -30° to 140°F(-34° to 60°C) |
| Approvals | UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312 |
| LCD | Surface |
| Operating Humidity | 5% to 95% non-condensing |
Description

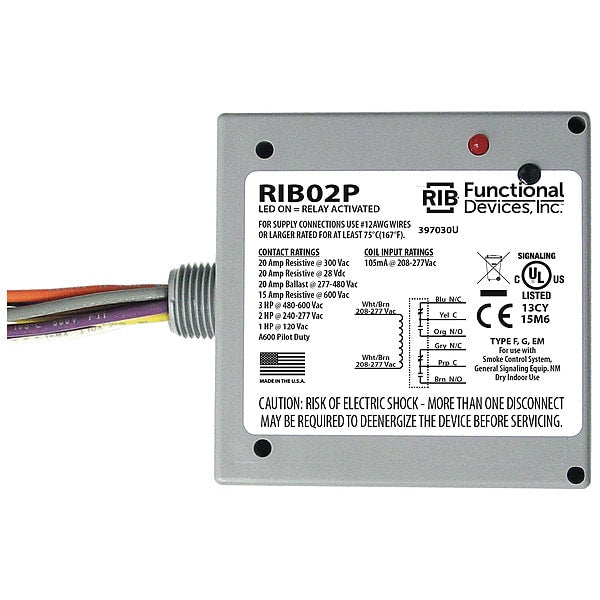

The Functional Devices-Rib RIB02P is an enclosed pre-wired relay with DPDT contacts. This relay switches power loads, rated for 20A at 300VAC and 20A at 28VDC, with a 2 hp rating at 240V. It operates at 50/60 Hz and is CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, and UL Listed.
