- Nipple Size: 0.50 in NPT
- Hz - Electrical: 50 Hz, 60 Hz
- HP @ 120V: 1 hp
- NEMA Enclosure Type: 1
- Contact Amp Rating (Resistive): 20A @ 300VAC, 15A @ 600VAC, 20A @ 28VDC
- Hz: 50/60
Specifications
| Part Number | RIB013P |
| Brand | Functional Devices-Rib |
| Item - Relay | Prewired Relay |
| Application - Prewired Relay | Power |
| AC Contact Rating - Relay | 15A @ 600V, 20A @ 300V |
| DC Contact Rating - Relay | 20A @ 28V |
| Contact Form - Relay | 3PST-NO |
| Body Depth - Relay | 1.8 in |
| Overall Height - Relay | 4.0 in |
| Body Height - Relay | 4.0 in |
| Nipple Size | 0.50 in NPT |
| Lead Length | 16 in |
| Dimensions | 4.0"H x 4.0"W x 1.8"D |
| Body Width - Relay | 4.0 in |
| Overall Depth | 1.8 in |
| Body Height | 1.8 in |
| Body Depth | 1.8 in |
| Body Width | 4 in |
| Coil Volts | 120V AC |
| Mounting - Relay | 1/2 in Nipple, Surface |
| Power Consumption - Relay | 18.0VA |
| Features | Enclosed Coil, Screw Terminals and Silver Alloy Contacts |
| Application | Power |
| Hz - Electrical | 50 Hz, 60 Hz |
| HP @ 120V | 1 hp |
| Contact Form | 3PST-NO |
| NEMA Enclosure Type | 1 |
| Indicator Type | LED |
| Contact Amp Rating (Resistive) | 20A @ 300VAC, 15A @ 600VAC, 20A @ 28VDC |
| Standards | CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed |
| Hz | 50/60 |
| Item | Enclosed Pre-Wired Relay |
| HP @ 240V | 2 hp |
| Contact Material | Silver Alloy |
| Response Time | 20 msec |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Horsepower @ 120V AC | 1 hp |
| Status Indicator | LED Indicator |
| Current Rating | 20 A |
| Power Consumption | 18 VA |
| Contact Rating (DC) | 20 A @ 28V |
| Maximum Operating Temperature | 140 Degrees F |
| Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Minimum Operating Temperature | -30 Degrees F |
| NEMA Enclosure Rating | 1 |
| Operating Current | 20 A at 120V AC |
| Contact Rating (AC) | 15 A @ 600V, 20 A @ 277 to 480/300V |
| Horsepower @ 240V AC | 5 hp |
| Sealing | Enclosed |
| Mounting Style | Surface |
| Input Voltage | 120V AC |
| Mechanical Operating Durability | 10,000,000 |
| Electrical Phase | Three |
| Operating Temperature | -30 to 140° F |
| Coil Voltage Input | 120 Vac ; 50-60 Hz Drop Out - 35 Vac Pull In - 85 Vac |
| Contact Ratings | 20 Amp Resistive @ 300 Vac, 28 Vdc 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 15 Amp Resistive @ 600 Vac 770 VA Pilot Duty @ 120 Vac, 1 Phase 1,158 VA Pilot Duty @ 240 Vac, 1 Phase 1,110 VA Pilot Duty @ 277 Vac, 1 Phase 1,640 VA Pilot Duty @ 480 Vac, 1 Phase 1,466 VA Pilot Duty @ 240 Vac, 3 Phase 2,112 VA Pilot Duty @ 480 Vac, 3 Phase Heavy Pilot Duty @ 600 Vac 7.5 HP @ 480 Vac, 3 Phase 5 HP @ 240 Vac, 3 Phase 3 HP @ 480-600 Vac, 1 Phase 2 HP @ 240-277 Vac, 1 Phase 1 HP @ 120 Vac, 1 Phase |
| Approvals | UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE |
| Gold Flash | No |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| No. of Relays & Contact Type | One (1) 3PST Continuous Duty Coil |
| Expected Relay Life | 10 million cycles minimum mechanical |
| Operate Time | 20ms |
| Coil Current | 154 mA @ 120 Vac (RIB013P) |
| Override Switch | No |
| Relay Status | LED On - Activated |
| Wires | 16", 600V Rated |
| Humidity Range | 5 to 95% (noncondensing) |
Description

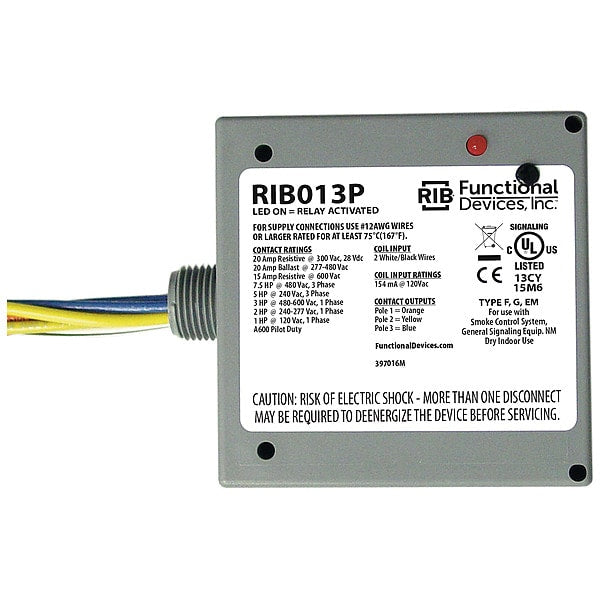

The Functional Devices-Rib RIB013P is an enclosed prewired relay with a 3PST configuration. This relay switches power loads, rated for 20A at 300VAC and 15A at 600VAC, with a 1 hp rating at 120V. It operates at 50 or 60 Hz and features an enclosed coil, screw terminals, and silver alloy contacts.
| Shipping | This item ships to USA |
Processing Time:
