- Pipe Size - Regulators: 3/4 in
- Max. Inlet Pressure - Regulators: 300 psi
- Max. Temp. - Regulators: 150 Degrees F
- Pipe Size (Regulators): 3/4"
- Air Outlet Size: 3/4 in
- Air Inlet Size: 3/4 in
Specifications
| Part Number | R30-06-000 |
| Brand | Wilkerson |
| Pipe Size - Regulators | 3/4 in |
| Max. Inlet Pressure - Regulators | 300 psi |
| Adjustment Range - Regulators | 10 to 125 psi |
| Max. Temp. - Regulators | 150 Degrees F |
| Overall Height - Regulators | 10.3 in |
| Overall Height (Regulators) | 10.30" |
| Pipe Size (Regulators) | 3/4" |
| Overall Width - Regulators | 4.3 in |
| Overall Width (Regulators) | 4.30" |
| Overall Width | 4 5/16 in |
| Overall Height | 10 5/16 in |
| Air Outlet Size | 3/4 in |
| Air Inlet Size | 3/4 in |
| Overall Depth | 2 5/8 in |
| Pressure Gauge Port Size | 1/4 in |
| Height | 10.3" |
| Item | Compressed Air Regulator |
| Series | R30 |
| Gauge Port | 1/4 in NPT |
| Max. Temp. (Regulators) | 150 Degrees F |
| Adjustment Knob | Rising |
| Compressed Air Regulator Product Grouping | General Purpose Air Regulator |
| Max. Flow - Regulators | 470 cfm |
| Adjustment Range (Regulators) | 10 to 125 psi |
| Max. Inlet Pressure (Regulators) | 300 psi |
| Max. Flow (Regulators) | 470 cfm |
| Body Material | Zinc |
| Maximum Flow Rate | 470 cfm |
| Air Inlet Gender | Female |
| Minimum Regulated Pressure | 10 psi |
| Seal Material | Nitrile |
| For Fluid Type | Air |
| Pressure Gauge Port Type | NPT |
| Maximum Operating Temperature | 150 Degrees F |
| System Location | Air Line |
| Number of Air Inlets | 1 |
| Pressure Drop | 15 psig |
| Maximum Regulated Pressure | 125 psi |
| Air Inlet Type | NPT |
| Number of Air Outlets | 1 |
| For Substance Type | Air |
| Weight | 6 lb |
| Adjustment Mechanism | Knob |
| Air Outlet Type | NPT |
| Air Outlet Gender | Female |
| Maximum Operating Pressure | 300 psi |
| Pressure Gauge Included | No |
| Minimum Operating Temperature | 32 Degrees F |
| Regulator Type | Relieving |
| Type | Modular |
Description

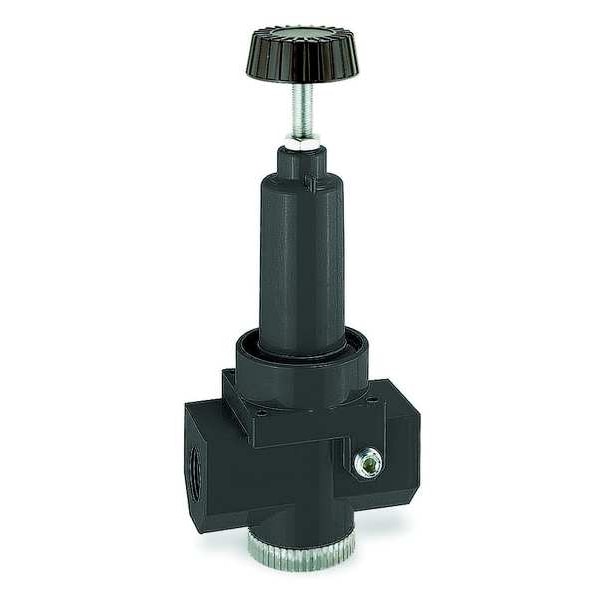

The Wilkerson R30-06-000 is a compressed air regulator from the R30 series. This type of part controls and maintains a consistent downstream air pressure by reducing a variable inlet pressure to a set outlet pressure. It has a maximum inlet pressure of 300 psi, a maximum flow of 470 cfm, and a maximum temperature rating of 150 degrees Fahrenheit.
