- Pipe Size - Regulators: 1/2 in
- Max. Inlet Pressure - Regulators: 300 psi
- Max. Temp. - Regulators: 125 Degrees F
- Pipe Size (Regulators): 1/2"
- Air Inlet Size: 1/2 in
- Air Outlet Size: 1/2 in
Specifications
| Part Number | R119-04CG |
| Brand | Parker |
| Pipe Size - Regulators | 1/2 in |
| Max. Inlet Pressure - Regulators | 300 psi |
| Adjustment Range - Regulators | 0 to 125 psi |
| Max. Temp. - Regulators | 125 Degrees F |
| Overall Height - Regulators | 6.76 in |
| Overall Height (Regulators) | 6.76" |
| Overall Width (Regulators) | 3.56" |
| Overall Width - Regulators | 3.56 in |
| Overall Length | 3.56 in |
| Pipe Size (Regulators) | 1/2" |
| Air Inlet Size | 1/2 in |
| Air Outlet Size | 1/2 in |
| Overall Depth | 3 9/16 in |
| Overall Height | 6 7/8 in |
| Pressure Gauge Port Size | 1/4 in |
| Overall Width | 3 9/16 in |
| Length | 3.56" |
| Height | 6.76" |
| Width | 3.56" |
| Item | Compressed Air Regulator |
| Includes | Gauge Plug and Face Gauge, Regulator |
| Adjustment Knob | Nonrising |
| Compressed Air Regulator Product Grouping | General Purpose Air Regulator |
| Body Material | Zinc |
| Valve Design | Balanced |
| Max. Inlet Pressure (Regulators) | 300 psi |
| Series | R119 |
| Max. Flow - Regulators | 150 cfm |
| Gauge Port | 1/4 in NPT |
| Max. Temp. (Regulators) | 125 Degrees F |
| Adjustment Range (Regulators) | 0 to 125 psi |
| Max. Flow (Regulators) | 150 cfm |
| Adjustment Mechanism | Screwdriver |
| Number of Air Inlets | 1 |
| Air Outlet Type | NPT |
| Adjustment Location | Top |
| Air Inlet Type | NPT |
| Minimum Operating Temperature | 40 Degrees F |
| Number of Air Outlets | 1 |
| Pressure Gauge Included | Yes |
| Seal Material | Nitrile |
| Adjustment Mechanism Material | Steel |
| Modular Connection | No Modular Connection |
| Air Inlet Gender | Female |
| Maximum Regulated Pressure | 125 psi |
| Regulator Type | Relieving |
| Maximum Operating Temperature | 125 Degrees F |
| Pressure Gauge Port Type | NPT |
| For Fluid Type | Air |
| For Substance Type | Air |
| System Location | Air Line |
| Maximum Flow Rate | 150 cfm |
| Weight | 3.2 lb |
| Minimum Regulated Pressure | 2 psi |
| Maximum Operating Pressure | 300 psi |
| Air Outlet Gender | Female |
| Material | Zinc |
| Max. Pressure | 300 psi |
Description

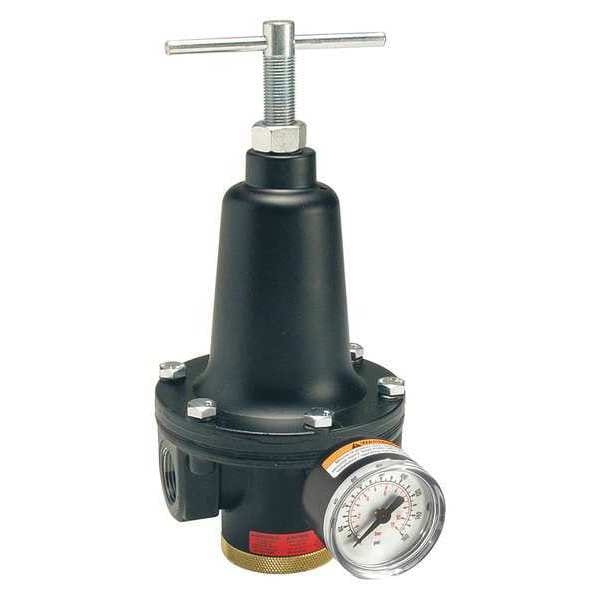

The Parker R119-04CG is a compressed air regulator from the R119 series. This type of part controls and reduces the pressure of compressed air to a consistent output level. It has a maximum inlet pressure of 300 psi and a maximum temperature rating of 125 degrees Fahrenheit, with a zinc body construction.
