- Maximum Operating Temperature: 158 Degrees F
- Storage Temperature Range: -22 Degrees to 158 Degrees F
- Minimum Operating Temperature: 32 Degrees F
- Housing Material: Fiberglass Reinforced PPS
Specifications
| Part Number | QFM81.2 |
| Brand | Siemens |
| For Use With | Dehumidifiers, Humidifiers |
| Includes | Mounting Flange |
| Standards | CE 73/23/EEC, cUL C22.2 No. 24-93, UL 873 |
| Weight | 12 oz |
| Sensing Element Type | All-Polymer |
| Overall Height | 140 mm |
| Overall Width | 73 mm |
| Probe Length | 6 in |
| Manufacturers Warranty Length | 5 yr |
| Overall Depth | 2 1/2 in |
| Overall Length | 246 mm |
| Insertion Length | 5 1/8 in |
| Item | Humidity Sensor |
| Features | 10 m/s Max Air Velocity, Adjustable Immersion Length (5.12 to 6.14 in), Analog Dial, Minimum Mounting Height 0.5 m, On/Off Control, Recommended Mounting Height 1.5 m, SPDT Switch |
| Output | 100 mA to 5 A, 24 V AC/DC |
| Interface Type | Dial |
| Process Connection Type | Flange |
| Electrical Connection Type | Screw Terminals |
| Humidity Accuracy | +/-5% |
| Maximum Operating Temperature | 158 Degrees F |
| Power Source | 24V AC/DC |
| Series | QFM81 |
| Includes Power Supply | Power Supply Included |
| Storage Temperature Range | -22 Degrees to 158 Degrees F |
| Relative Humidity Range | 15 to 95% |
| Minimum Operating Temperature | 32 Degrees F |
| Product Type | Duct Humidity Sensor |
| Housing Type | Flange Mount |
| Power Required | 24V AC/DC |
| Application | Air Ducts, Dehumidifiers, Humidifiers, Humidity Monitoring, HVAC |
| IP Rating | IP30 |
| Display Type | None |
| Power Type | Electrical |
| Housing Material | Fiberglass Reinforced PPS |
Description

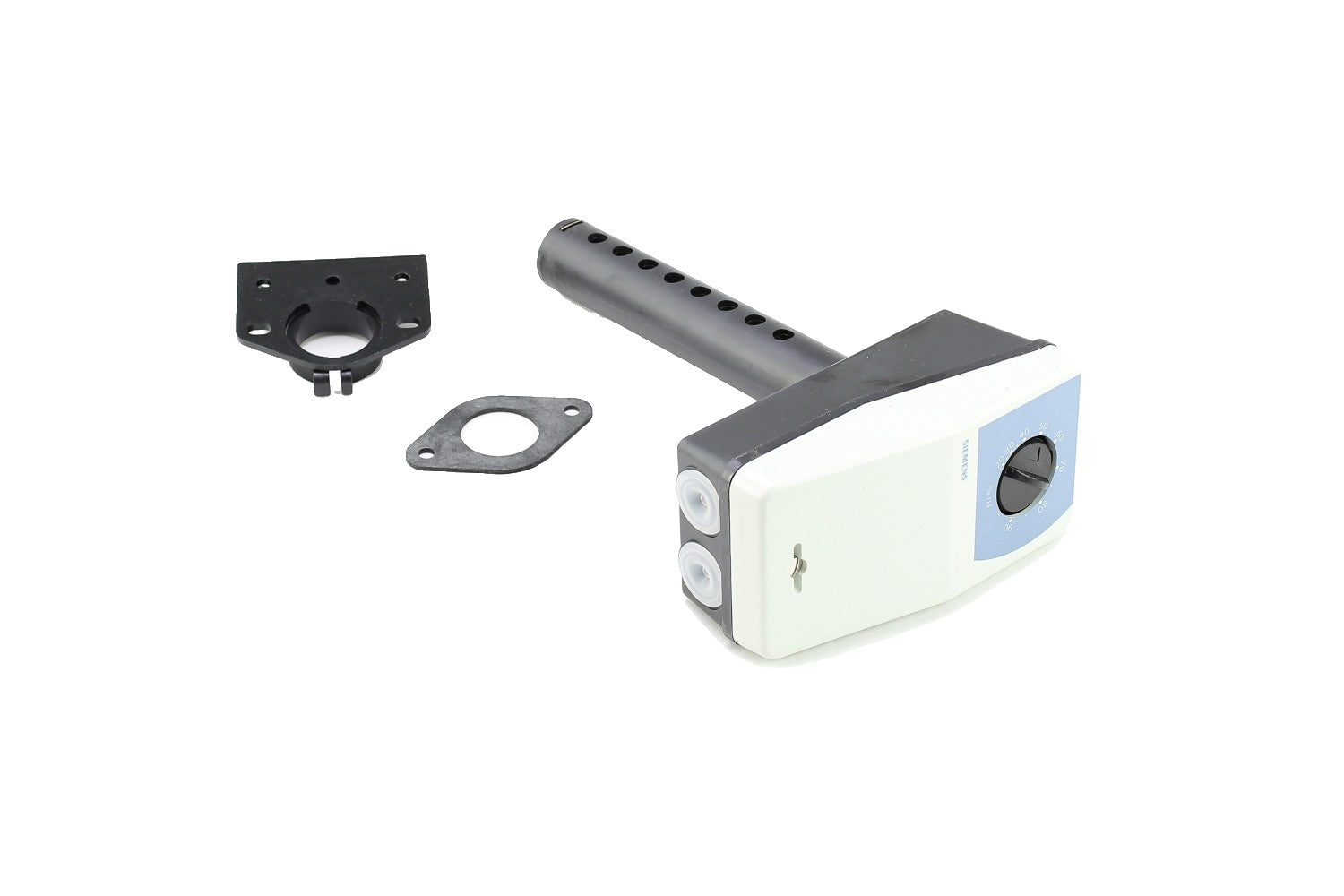

The Siemens QFM81.2 is a duct hygrostat humidity sensor with an all-polymer sensing element. This sensor measures relative humidity and provides on/off control via an SPDT switch, with an adjustable immersion length and an analog dial interface. It is designed for use with dehumidifiers and humidifiers, includes a mounting flange, and complies with CE, cUL, and UL standards.
