- Housing Material: Galvanized Steel
- Voltage: 115
- Max. Amps: 3.08 A
- Max. Wattage: 370
- Duct Diameter: 12 in
- Overall Diameter: 9 1/4 in
Specifications
| Part Number | PV-315X |
| Brand | Soler & Palau |
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 12 in |
| Voltage | 115 |
| Max. Amps | 3.08 A |
| Max. Wattage | 370 |
| Housing Dia. | 15 15/16 in |
| Length | 15 15/16 in |
| Flange Width | 1 in |
| Inlet and Outlet Dia. | 12 in |
| Width | 15 15/16 in |
| Height | 9 1/16 in |
| Overall Height | 9 1/8 in |
| Duct Diameter | 12 in |
| Overall Width | 16 in |
| Overall Diameter | 9 1/4 in |
| Item | In-Line Duct Fan |
| Number of Speeds | 1 |
| Motor RPM | 2650 |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.400-In. SP | 793 cfm |
| CFM @ 0.200-In. SP | 873 cfm |
| Standards | AMCA, HVI, UL |
| Includes | Mounting Bracket |
| CFM @ 0.600-In. SP | 689 cfm |
| CFM @ 0.750-In. SP | 622 cfm |
| CFM @ 0.125-In. SP | 905 cfm |
| CFM @ 1.000-In. SP | 508 cfm |
| Max. Inlet Temp. | 140 Degrees F |
| Motor Enclosure | Totally Enclosed |
| Hz | 60 |
| Phase | 1 |
| CFM @ 1.200-In. SP | 422 cfm |
| CFM @ 0.800-In. SP | 576 cfm |
| CFM @ 0.450-In. SP | 781 cfm |
| CFM @ 0.500-In. SP | 762 cfm |
| Housing Finish | Black Epoxy Coating |
| CFM @ 0.250-In. SP | 859 cfm |
| CFM @ 0.000-In. SP | 942 |
| CFM @ 0.375-In. SP | 811 cfm |
| CFM @ 0.100-In. SP | 919 |
| Speed Control | Yes |
| CFM @ 1.500-In. SP | 390 cfm |
| Bearing Type | Ball Bearing |
| Maximum Inlet Air Temperature | 140 Degrees F |
| Airflow @ 0.000 in SP | 942 cfm |
| High-Efficiency Motor | No |
| Mounting Orientation | Horizontal or Vertical |
| Application | General Purpose |
| For Fan Type | Dryer Booster |
| Motor Speed | 2,650 RPM |
| Speed Control Included | No |
| Speed Controllable | Yes |
| Motor IP Rating | IP44 |
| Motor Output Power | 365 W |
| Nameplate Voltage | 115V AC |
Description

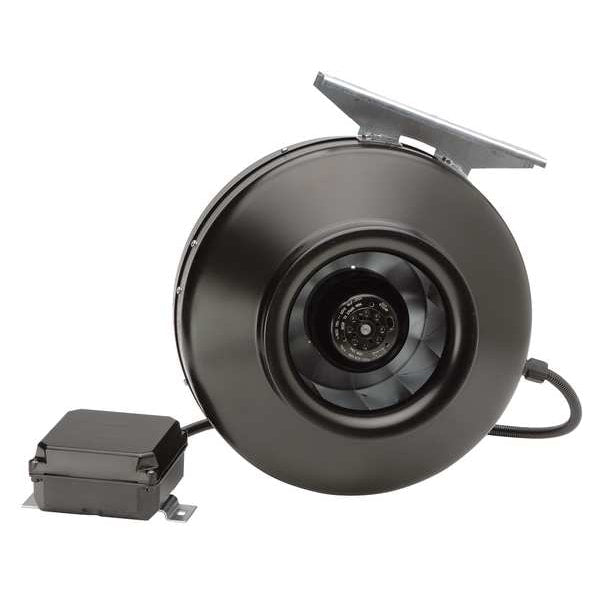

The Soler & Palau PV-315X (item 5145611900) is a 12-inch diameter inline centrifugal duct fan. This fan moves air through ductwork, operating at 2650 RPM with a 115-volt, 3.08-amp, 370-watt motor and a galvanized steel housing. It includes a mounting bracket and meets AMCA, HVI, and UL standards.
