- Housing Material: Galvanized Steel
- Voltage: 120v
- Max. Amps: 1.08 A
- Max. Wattage: 130
- Duct Diameter: 6 in
- Overall Diameter: 8 1/2 in
Specifications
| Part Number | PV-150X |
| Brand | Soler & Palau |
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 6 in |
| Voltage | 120v |
| Max. Amps | 1.08 A |
| Max. Wattage | 130 |
| Housing Dia. | 13 1/8 in |
| Length | 13 1/8 in |
| Inlet and Outlet Dia. | 6 in |
| Width | 13 1/8 in |
| Flange Width | 1 in |
| Height | 8 1/2 in |
| Duct Diameter | 6 in |
| Overall Width | 13 1/8 in |
| Overall Height | 8 1/2 in |
| Overall Diameter | 8 1/2 in |
| Item | In-Line Duct Fan |
| Number of Speeds | 1 |
| Motor RPM | 3075 |
| CFM @ 0.125-In. SP | 367 cfm |
| CFM @ 0.600-In. SP | 262 cfm |
| CFM @ 1.500-In. SP | 110 cfm |
| Speed Control | Yes |
| Includes | Mounting Bracket |
| CFM @ 0.400-In. SP | 304 cfm |
| CFM @ 1.200-In. SP | 153 cfm |
| CFM @ 0.200-In. SP | 350 cfm |
| Standards | AMCA, HVI, UL |
| Phase | 1 |
| CFM @ 0.800-In. SP | 208 cfm |
| Housing Finish | Black Epoxy Coating |
| CFM @ 0.375-In. SP | 312 cfm |
| Motor Enclosure | Totally Enclosed |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.100-In. SP | 374 |
| CFM @ 0.250-In. SP | 340 cfm |
| Max. Inlet Temp. | 140 Degrees F |
| CFM @ 0.750-In. SP | 233 cfm |
| Hz | 60 |
| CFM @ 0.000-In. SP | 390 |
| CFM @ 0.500-In. SP | 285 cfm |
| CFM @ 1.000-In. SP | 193 cfm |
| CFM @ 0.450-In. SP | 294 cfm |
| Bearing Type | Ball Bearing |
| Motor IP Rating | IP44 |
| Speed Control Included | No |
| Maximum Inlet Air Temperature | 140 Degrees F |
| For Fan Type | Dryer Booster |
| Motor Output Power | 130 W |
| High-Efficiency Motor | No |
| Mounting Orientation | Horizontal or Vertical |
| Application | General Purpose |
| Airflow @ 0.000 in SP | 390 cfm |
| Speed Controllable | Yes |
| Motor Speed | 3,075 RPM |
| Nameplate Voltage | 120V AC |
Description

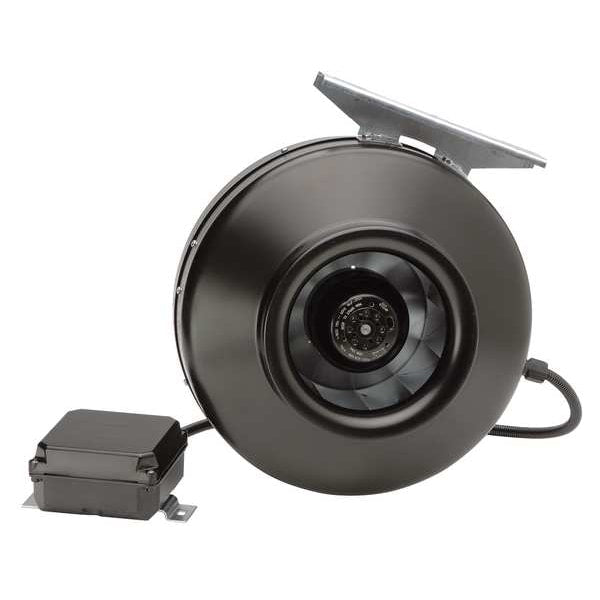

The Soler & Palau PV-150X (item 5145896500) is a 6-inch diameter in-line centrifugal duct fan. This fan moves air through ductwork, operating at 120V with a maximum of 1.08 amps and 130 watts, and a motor speed of 3075 RPM. It is constructed with a galvanized steel housing and includes a mounting bracket, meeting AMCA, HVI, and UL standards.
