- Housing Material: Galvanized Steel
- Voltage: 120v
- Max. Amps: 0.708 A
- Max. Wattage: 85
- Duct Diameter: 5 in
- Overall Diameter: 7 7/8 in
Specifications
| Part Number | PV-125X |
| Brand | Soler & Palau |
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 5 in |
| Voltage | 120v |
| Max. Amps | 0.708 A |
| Max. Wattage | 85 |
| Housing Dia. | 9 1/2 in |
| Length | 9 1/2 in |
| Flange Width | 1 in |
| Inlet and Outlet Dia. | 5 in |
| Width | 9 1/2 in |
| Height | 7 5/8 in |
| Overall Width | 9 1/2 in |
| Duct Diameter | 5 in |
| Overall Height | 7 5/8 in |
| Overall Diameter | 7 7/8 in |
| Item | In-Line Duct Fan |
| Number of Speeds | 1 |
| Motor RPM | 2745 |
| CFM @ 0.800-In. SP | 103 cfm |
| Max. Inlet Temp. | 140 Degrees F |
| CFM @ 0.000-In. SP | 206 |
| CFM @ 0.200-In. SP | 177 cfm |
| CFM @ 0.125-In. SP | 190 cfm |
| CFM @ 0.375-In. SP | 153 cfm |
| CFM @ 0.100-In. SP | 197 |
| CFM @ 0.600-In. SP | 121 cfm |
| CFM @ 0.400-In. SP | 146 cfm |
| Mounting Position | Horizontal or Vertical |
| CFM @ 1.000-In. SP | 88 cfm |
| CFM @ 1.500-In. SP | 33 cfm |
| CFM @ 0.750-In. SP | 110 cfm |
| CFM @ 0.450-In. SP | 141 cfm |
| Hz | 60 |
| Bearing Type | Ball Bearing |
| CFM @ 0.250-In. SP | 170 cfm |
| Standards | AMCA, HVI, UL |
| Speed Control | Yes |
| CFM @ 1.200-In. SP | 57 cfm |
| CFM @ 0.500-In. SP | 135 cfm |
| Housing Finish | Black Epoxy Coating |
| Motor Enclosure | Totally Enclosed |
| Includes | Mounting Bracket |
| Phase | 1 |
| Airflow @ 0.000 in SP | 206 cfm |
| Mounting Orientation | Horizontal or Vertical |
| Maximum Inlet Air Temperature | 140 Degrees F |
| Motor Output Power | 85 W |
| High-Efficiency Motor | No |
| Speed Controllable | Yes |
| Speed Control Included | No |
| For Fan Type | Dryer Booster |
| Motor Speed | 2,745 RPM |
| Nameplate Voltage | 120V AC |
| Application | General Purpose |
| Motor IP Rating | IP44 |
Description

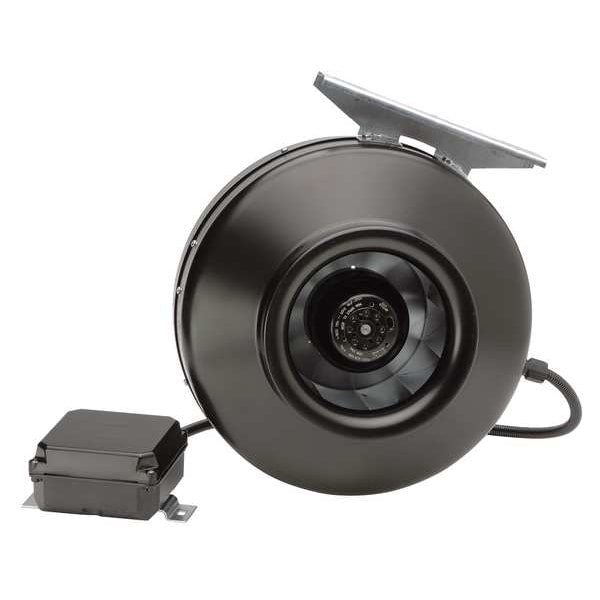

The Soler & Palau PV-125X (item 5145896400) is an in-line duct fan with a 5-inch diameter. As an inline centrifugal duct fan, it moves air through ductwork. This 120V, 60 Hz unit has a galvanized steel housing, a maximum amperage of 0.708 A, a maximum wattage of 85, a motor RPM of 2745, and a maximum inlet temperature of 140 degrees Fahrenheit.
