- Cooling Capacity: 14,400 BtuH
- Heating Capacity - Electric: 14,400 BtuH
- Voltage: 208/230V AC
- NEMA Plug Configuration - HVAC: 6-30P
- Refrigerant Type: R-32
- Hz: 60 Hz
Specifications
| Part Number | PTH153J35AXXX |
| Brand | Amana |
| Cooling Capacity | 14,400 BtuH |
| Operation Mode - HVAC | Cooling/Heating |
| Heating Method | Heat Pump/Electric Heat |
| Heating Capacity - Electric | 14,400 BtuH |
| Voltage | 208/230V AC |
| Power Cord Length | 4 13/16 ft |
| Width | 42 in |
| Sleeve Width | 40 in |
| Depth | 21 1/2 in |
| Sleeve Length | 14 1/8 in |
| Height | 16 in |
| Sleeve Height | 16 1/16 in |
| NEMA Plug Configuration - HVAC | 6-30P |
| Refrigerant Type | R-32 |
| Reverse Cycle Heat COP | 3.1/3.1 |
| Item | Packaged Terminal Air Conditioner |
| Hz | 60 Hz |
| EER | 10.4/10.6 |
| Phase | Single |
| Heat Pump Heating Capacity - Minimum | 14,000 BtuH |
| Coverage Area - Maximum | 584 sq ft |
| Heating Capacity | 14,300 BtuH |
| Watts | 3,500 W |
| Amps | 7.1 A |
| Smart Connectivity | Bluetooth |
| Cooling Capacity - Maximum | 14,600 BtuH |
| Coverage Area - Minimum | 487 sq ft |
Description

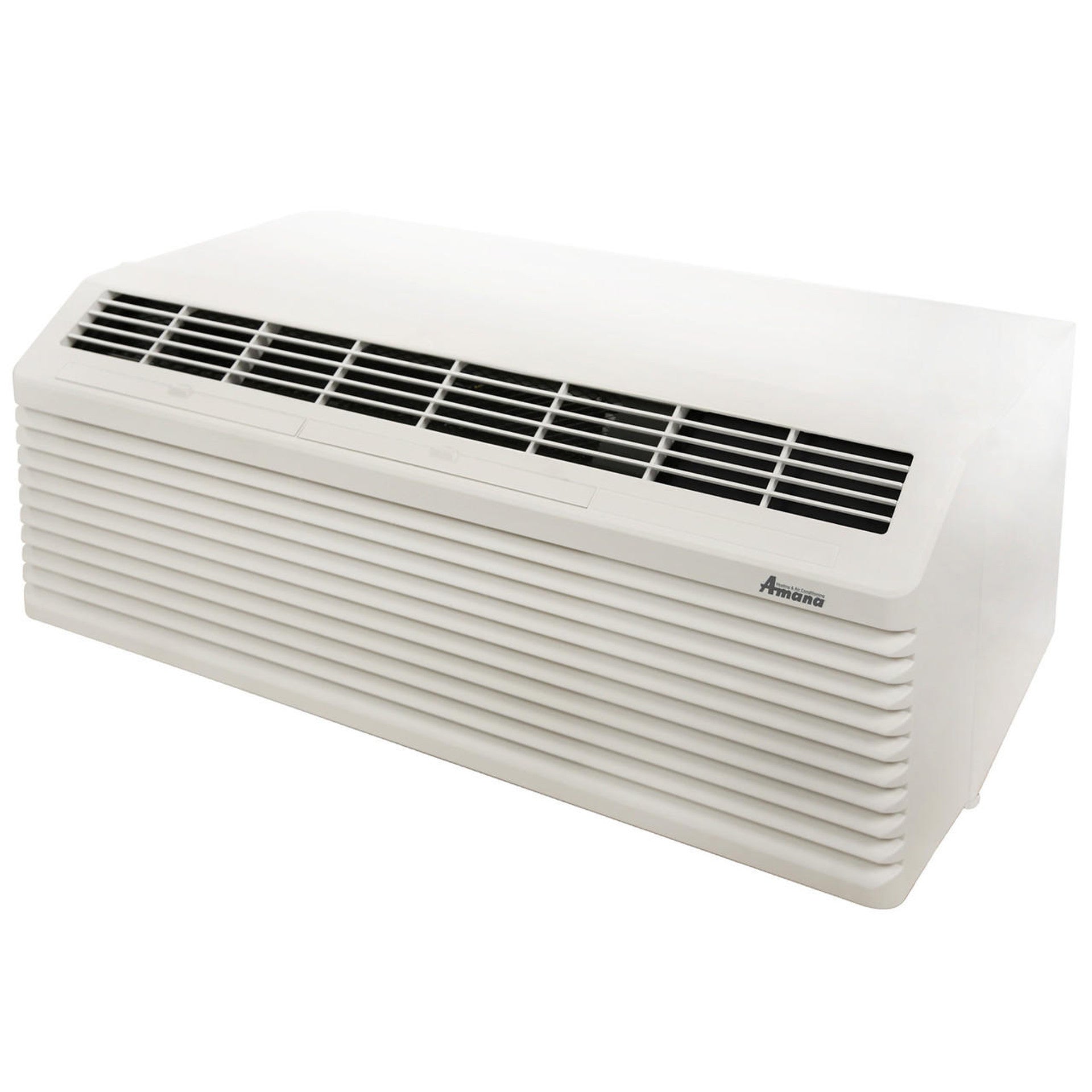

The Amana PTH153J35AXXX is a packaged terminal air conditioner (PTAC) that provides 14,400 BtuH of cooling and 14,400 BtuH of electric heating. It operates on 208/230V AC, single-phase, 60 Hz power and uses R-32 refrigerant. This unit features a NEMA 6-30P plug configuration.
