- Input Voltage: 100/240V AC
- Output Voltage - Nominal: 24V DC
- Wire Size - Maximum: 14 AWG
- Wire Size - Minimum: 16 AWG
- Housing Material: Aluminum
- Phase: Single
Specifications
| Part Number | PSG240E24RM |
| Brand | Eaton |
| Input Voltage | 100/240V AC |
| Output Voltage - Nominal | 24V DC |
| Output Power - Rated | 240 W |
| Current - Output | 10 A |
| Mounting | DIN Rail |
| Overall Height | 3.35 in |
| Overall Width | 4.88 in |
| Overall Depth | 4.76 in |
| Width | 3.35 in |
| Depth | 4.76 in |
| Height | 4.88 in |
| Wire Size - Maximum | 14 AWG |
| Wire Size - Minimum | 16 AWG |
| Item | DC Power Supply |
| Housing Material | Aluminum |
| Phase | Single |
| Power Supply Style | Switching |
| Standards | CE, CSA, cUL 62368-1, cULus/UL 60950-1, DIN 57100-410, EN 50178, EN 60204, EN 61000-4-11, EN 61000-4-2, EN 61000-406, EN 61000-6-2, EN 61000-6-3, EN 610003-2, German Safety, IEC, PELV (EN 60204), RoHS, SELV (EN 60950), UL 508, UL 62368-1 |
| Power Rating | 240W |
| Output Amps | 10A |
| IP Rating | IP20 |
| Hold Up Time | Greater Than 22 msec |
| Status Indicator | LED/DC OK Signal |
| Case Material | Aluminum Case |
| Hz | 50/60 Hz |
| Phase - Electrical | Single |
| Output Voltage | 24V DC |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Operating Temp. Range | -20 to 80°C |
| Series | PSG |
| Peak Amps | 15 |
| Style | Switching |
| Output Noise | Less Than 50mV |
| Degree Of Protection | IP20 |
| Certifications | cULus/UL 60950-1;SELV (EN 60950);EN 61000-4-11;EN 60204;EN 50178;EN 61000-4-2;IEC Rated;UL 508;PELV (EN 60204);EN 61000-406;CSA Certified;EN 61000-6-3;EN 61000-6-2;EN 610003-2;UL 62368-1;cUL 62368-1 |
| Compliances | German Safety;DIN 57100-410;CE Marked |
| Frequency Rating | 47-63 Hz |
| Terminals | IP20 finger safe |
| Maximum Efficiency @ 115V AC | 90 % |
| Maximum Efficiency @ 230V AC | 90 % |
| Current - Peak | 15 A |
| NEMA Enclosure Rating | 1 |
| Current - Inrush | 35 A |
| Special Features | Finger Safe, Overvoltage Protection |
| Operating Temperature - Minimum | -4 Degrees F |
| Mean Time Between Failures (MTBF) | 500,000 hr |
| Operating Temperature - Maximum | 167 Degrees F |
Description

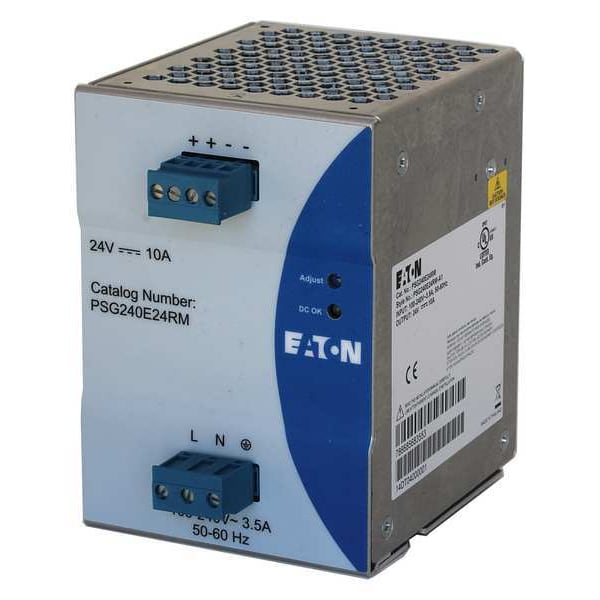

The Eaton PSG240E24RM is a 240W single-phase DC power supply that converts 100/240V AC input to a 24V DC output at 10A. Housed in an aluminum enclosure, this power supply is designed to provide regulated power for connected equipment. It complies with multiple safety and performance standards including CE, CSA, cUL 62368-1, cULus/UL 60950-1, UL 508, and RoHS.
