- HP: 1/2
- Nameplate RPM: 1,725/1,425
- Voltage: 115/208-230V AC
- RPM Range: 1,701-1,800
- Hz: 60/50 Hz
- Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Specifications
| Part Number | PD6006 |
| Brand | U.S. Motors |
| HP | 1/2 |
| Nameplate RPM | 1,725/1,425 |
| Voltage | 115/208-230V AC |
| Frame | 48Z |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/4 in |
| Body Dia. | 5 9/16 in |
| Length Less Shaft | 8 7/8 in |
| Overall Length | 10 5/8 in |
| Manufacturers Warranty Length | 1 yr |
| Resilient Ring Dia. | 2 1/2 in |
| Motor Shaft Rotation | CCWLE |
| RPM Range | 1,701-1,800 |
| Motor Application | HVAC/R |
| Hz | 60/50 Hz |
| Item | Belt Drive Motor |
| Motor Enclosure Design | Open Dripproof |
| Motor Shaft Design | Flat |
| Motor Sub Application | Belt Drive Fan/Blower |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Mounting Position | Horizontal |
| Motor Design | Split-Phase |
| Phase | Single |
| No. of Speeds | 1 |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Ins. Class | B |
| Motor Thermal Protection | Auto |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 104 Degrees F |
| Full Load Amps | 8.6/4.2-4.3 A |
| Standards | CE Certification, UL |
| Usable @ 200V | No |
| Nominal Efficiency | 71.87 % |
| Usable @ 208V | Yes |
| Voltage @ 50Hz | 115/208V AC |
| Motor Frame Material | Steel |
| Full Load Amps @ 50Hz | 4.2-4.3 A |
| Extended Thru-Bolts | Yes |
| Weight | 22 lb |
| RPM @ 50Hz | 1,425 |
| Includes Shaft Bushing | Yes |
| Ring to Ring Center | 3 15/16 in |
| Duty Cycle | Continuous |
| Includes | 1 Bag, 1 Bushing, 1 Shaft Key |
| Mounting Stud Pattern | No |
Description

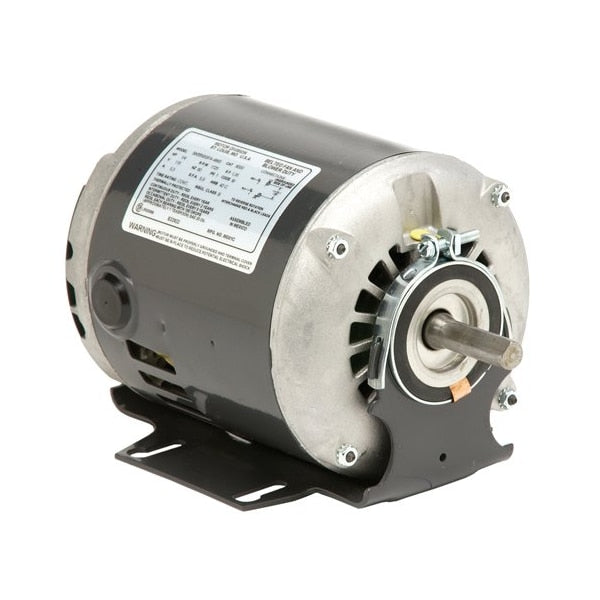

The U.S. Motors PD6006 is a 1/2 HP belt drive motor with an open dripproof enclosure. It operates at 1,725/1,425 RPM on 115/208-230V AC at 60/50 Hz. This single-speed motor is designed for HVAC/R applications.
