- Burst Pressure: 5x Range
- Process Connection Size: 1/8 in
- Process Connection Size - Transmitter: 1/8 in
- Overpressure: 2x Range
- Pressure Units: psig/bar
- Housing Material: Stainless Steel
Specifications
| Part Number | P499RAP-101K |
| Brand | Johnson Controls |
| Includes | 6 1/2 Ft (2 m) Wire Harness, Transducer |
| Wiring Entry - Transmitter | None |
| Burst Pressure | 5x Range |
| Output | 0.5 to 4.5V DC |
| Electrical Connection | 3-Pin Packard Connector |
| Process Connection Size | 1/8 in |
| Overall Width | 0.875 in |
| Lead Length | 78.74 |
| Process Connection Size - Transmitter | 1/8 in |
| Cable Length | 6.5 ft |
| Overall Length | 3.19 in |
| Manufacturers Warranty Length | 3 yr |
| Item | Pressure Transmitter |
| Range Units - Transmitter | psig |
| Transmitter Type | Pressure Transmitter |
| Process Connection Type - Transmitter | MNPT |
| Range Values - Transmitter | 0 to 100 |
| Accuracy | +/-1% of Full Scale |
| Overpressure | 2x Range |
| Pressure Units | psig/bar |
| Housing Material | Stainless Steel |
| Number of Wires | 3 |
| Max. Pressure (PSI) | 200 psi |
| Operating Temp. - Transmitter | -40 Degrees to 185 Degrees F |
| Power Required - Transmitters | 5V DC |
| Fitting Material | Stainless Steel |
| Range | 0 to 100 psig |
| Explosion/Fire Proof | No |
| Loop Resistance | Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC |
| Compatible With | All Media Compatible with 17-4PH Stainless Steel, Including Ammonia |
| Maximum Loop Resistance | 100 Mega Ohm @ 500V DC |
| Wetted Materials - Transmitters | 17-4PH Stainless Steel |
| Minimum Operating Temperature | -40 Degrees F |
| Minimum Pressure | 0 psi |
| Process Connection Type | NPT |
| Housing | 17-4PH Stainless Steel Construction |
| Safety Rating - Transmitter | Class I, Div. 2, Groups A, B, C, D |
| NEMA Rating | 10 - Class 1, Division 2, Groups A, B, C, and D |
| Operating Temp. | -40 Degrees to 185 Degrees F |
| Intrinsically Safe | No |
| Maximum Operating Temperature | 185 Degrees F |
| Series | P499 |
| Power Required | 5V DC |
| Standards | UL Listed |
| Output - Transmitter | 0.5 to 4.5V DC |
| Features | 1% Total Error Band, Environmentally Protected Electronics, Long Operating Life, Single-Piece Machined Port |
| Electrical Connections | 3-Pin Packard Connector |
| Process Connection Gender | Male |
| For Use With | Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 17-4PH Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, and Many Other Compatible Fluids and Gases |
| Accuracy - Transmitter | +/-1.00% Full Scale |
| Wetted Materials | 17-4PH Stainless Steel Construction |
| Process Connection | 1/8 in Male NPT |
| For Use With Media Type | Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water |
| Storage Temperature Range | -40 Degrees F to 257 Degrees F (-40 Degrees C to 125 Degrees C) |
| Electrical Connections - Transmitter | Packard Connector with 6-1/2 ft Wiring Harness |
| Safety Rating | Class I Div. 2 |
| Maximum Pressure | 100 psi |
| Input Voltage | 5V DC |
| Intrinsic Safety | Not Specified Intrinsically Safe |
| Pressure Type Measured | Gauge |
| Includes NIST-Traceable Calibration Certificate | No NIST-Traceable Calibration Certificate Included |
| Pressure Measurement - Minimum | 0 psi |
| Process Media Temperature - Maximum | 185 Degrees F |
| IP Rating | IP67 |
| Process Media Temperature - Minimum | -40 Degrees F |
| Output Power | 0.5 to 4.5V DC |
| Loop Resistance - Maximum | 100 Mega Ohm @ 500V DC |
| Pressure Measurement - Maximum | 100 psi |
Description

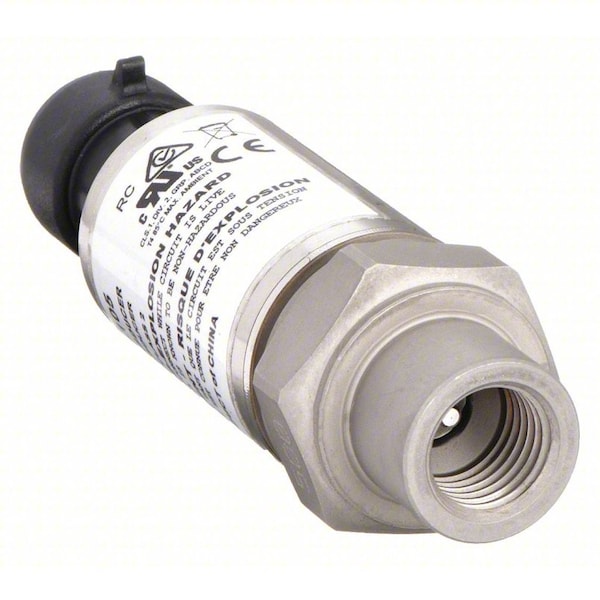

The Johnson Controls P499RAP-101K is a pressure transmitter. This sensor converts applied pressure into an electrical signal for monitoring or control. It has a 100 psi range and a burst pressure of 5x the range, includes a 6 1/2 ft wire harness and transducer, and features a 1/8 in MNPT process connection with a 3-pin Packard connector.
