- Pressure Connection: 36 in Capillary with Flare Nut
- Pressure Connection Size: 1/4 in
- Differential Pressure (PSI): 40 to 150
- Pressure Range - Minimum: 100 psi
- Pressure Connection Gender: Female
- NEMA Rating: 1
Specifications
| Part Number | O20-7006 |
| Brand | Ranco |
| Switch Type | DPST |
| Switch Action | Open on Fall |
| Pressure Connection | 36 in Capillary with Flare Nut |
| Connection | Copper Capillary withFlare Nut |
| Type | High Pressure |
| Capillary Length | 36 in |
| Pressure Connection Size | 1/4 in |
| Item | Single Pressure Control |
| Range (PSI) | 100 to 400 |
| Enclosure | NEMA 1 |
| Function | To Protect the Compressor from Excessive System Pressure which Could be Caused by Condenser Fan Failure |
| Reset | Auto |
| Mounting | Universal |
| Differential Pressure (PSI) | 40 to 150 |
| Application | High Limit |
| Contact Form | DPST |
| Pressure Range - Minimum | 100 psi |
| Pressure Connection Gender | Female |
| NEMA Rating | 1 |
| Input Sensor Type | Pressure Sensor |
| Pressure Connection Type | Flare |
| Pressure Differential - Minimum | 40 psi |
| Product Type | Single Pressure Control |
| Pressure Range - Maximum | 400 psi |
| Rated Voltage | 120V AC, 208/240V AC, 480V AC, 600V AC |
| Pressure Differential Max. | 150 psi |
| Reset Type | Automatic Reset |
| Pressure Type | Differential |
Description

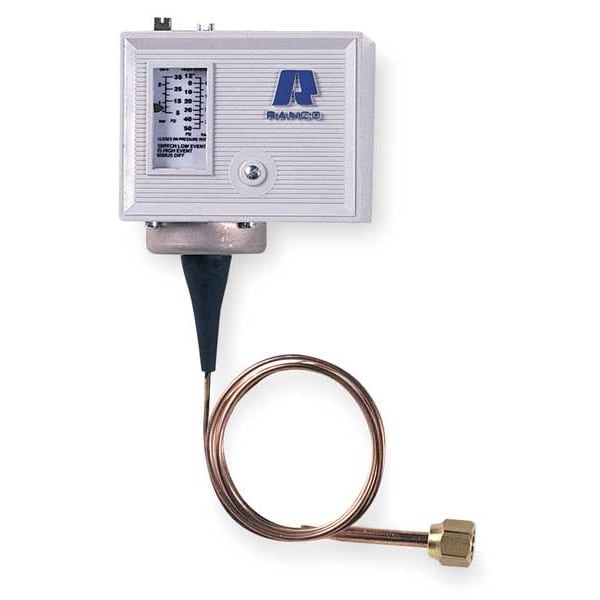

The Ranco O20-7006 is a single pressure control, specifically a high-pressure switch with a DPST (double-pole single-throw) switching type. This device monitors system pressure and opens or closes electrical contacts based on a setpoint, with a differential pressure range of 40 to 150 PSI. It features a 36-inch copper capillary with a 1/4-inch flare nut connection and is housed in a NEMA 1 enclosure.
