- Wattage Output: 11.2kW/15kW
- Heating Capacity: 38,200/51,200 BtuH
- Voltage: 208/240VAC
- Air Temp. Rise: 52°F
- Phase: 3
- Amperage: 31.3A/36.1A
Specifications
| Part Number | MUH152 |
| Brand | Qmark |
| Wattage Output | 11.2kW/15kW |
| Heating Capacity | 38,200/51,200 BtuH |
| Voltage | 208/240VAC |
| Air Temp. Rise | 52°F |
| Air Flow | 910 cfm |
| Manufacturers Warranty Length | 1 yr Parts, 5 yr Elements |
| Overall Height | 21-3/4 in |
| Overall Width | 19 in |
| Overall Dimensions - H x W x D | 21-3/4 in x 19 in x 12-3/4 in |
| Overall Depth | 12-3/4 in |
| Phase | 3 |
| Item | Electric Unit Heater |
| Amperage | 31.3A/36.1A |
| Horizontal Air Throw | 35 ft |
| Standards | UL, NEC, OSHA |
| Housing Material | Steel |
| Requires | MMB20, UHMT1 |
| Vertical Floor Coverage | 20 ft |
| Features | Enclosed Motor, Adjustable Louvers, Fan-Delay, Auto Reset |
| Housing Finish | Polyester Powder Coated |
| Vertical Mounting H | 20 ft |
| Switch Type | 3 Pole |
| Contactor Coil Voltage | 24V AC |
| Mounting Type | Wall & Ceiling |
| Includes | Adjustable Air Outlet Louvers |
| Voltage, Phase | 208/240V AC, 3-phase |
| Heating Method | Fan Forced |
| Control Type | Mechanical Selector Dial |
| Frequency | 60 Hz |
| Housing Color | Beige |
Description

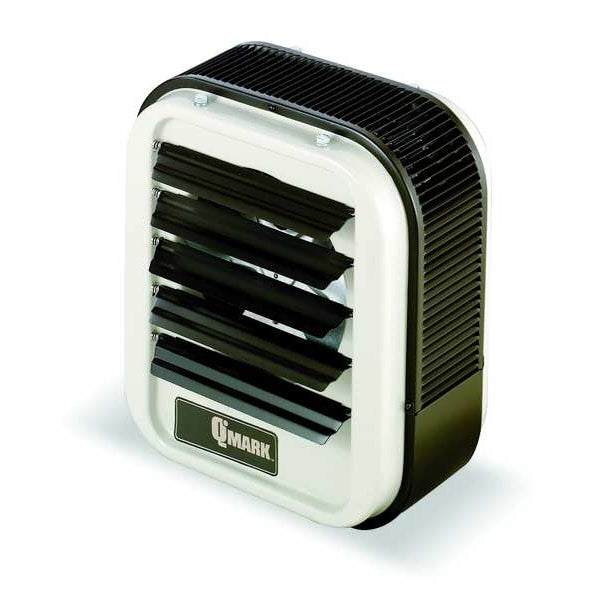

The Qmark MUH152 is a 3-phase electric heat kit designed for fan-forced unit heaters. It provides 11.2kW/15kW of heating capacity (38,200/51,200 BtuH) at 208/240VAC, with an airflow of 910 cfm and a 52°F air temperature rise.
