- Wattage Output: 10kW
- Heating Capacity: 34,120 BtuH
- Voltage: 208VAC
- Air Temp. Rise: 49°F
- Phase: 1 or 3
- Amperage: 48A
Specifications
| Part Number | MUH108 |
| Brand | Qmark |
| Wattage Output | 10kW |
| Heating Capacity | 34,120 BtuH |
| Voltage | 208VAC |
| Air Temp. Rise | 49°F |
| Air Flow | 650 cfm |
| Manufacturers Warranty Length | 1 yr Parts, 5 yr Elements |
| Overall Width | 19 in |
| Overall Height | 21-3/4 in |
| Overall Dimensions - H x W x D | 21-3/4 in x 19 in x 7-1/2 in |
| Overall Depth | 7-1/2 in |
| Phase | 1 or 3 |
| Item | Electric Unit Heater |
| Amperage | 48A |
| Housing Material | Steel |
| Features | Enclosed Motor, Adjustable Louvers, Fan-Delay, Auto Reset |
| Mounting Type | Wall & Ceiling |
| Horizontal Air Throw | 18 ft |
| Vertical Floor Coverage | 14 ft |
| Contactor Coil Voltage | 24V AC |
| Housing Finish | Polyester Powder Coated |
| Vertical Mounting H | 14 ft |
| Requires | MMB10, UHMT1 |
| Standards | UL, NEC, OSHA |
| Switch Type | 3 Pole |
| Includes | Adjustable Air Outlet Louvers |
| Heating Method | Fan Forced |
| Control Type | Mechanical Selector Dial |
| Frequency | 60 Hz |
| Housing Color | Beige |
| Voltage, Phase | 208V AC, 1 or 3-phase |
Description

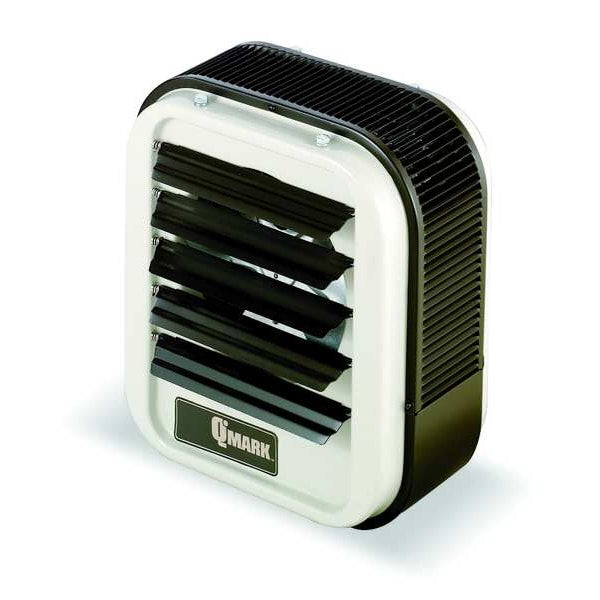

The Qmark MUH108 is a 10kW electric unit heater. This type of heater uses electric resistance to generate heat, which is then distributed by a fan. It operates on 208VAC at 48 amps, in either single or three-phase configuration, delivering 34,120 BtuH with a 49°F air temperature rise at 650 cfm.
