- Air Connection Size: 1/4 in
- Compatible Valve Size: 1 1/2 in, 2 in
- Max. Air Pressure: 25 psi
- Operating Temperature - Minimum: -20 Degrees F
- Stem Material: Stainless Steel
- Operating Temperature - Maximum: 150 Degrees F
Specifications
| Part Number | MP823C001 |
| Brand | Johnson Controls |
| Operating PSI Range | 0 to 25 |
| Stroke | 3/4 in |
| Application | Control of Hot/Chilled Water |
| Length | 9 7/32 in |
| Nominal Spring Range | 3 to 7 psi |
| Height | 11 in |
| Width | 9 7/32 in |
| Overall Width | 9 7/32 in |
| Overall Length | 10 21/32 in |
| Air Connection Size | 1/4 in |
| Overall Depth | 11 in |
| Compatible Valve Size | 1 1/2 in, 2 in |
| Item | Pneumatic Valve Actuator |
| Max. Air Pressure | 25 psi |
| For Use With | Mfr. No. VG7000 and VG2000 Globe Valves |
| Operating Temperature - Minimum | -20 Degrees F |
| Stem Material | Stainless Steel |
| Air Connection Type | Barbed Hose |
| Operating Temperature - Maximum | 150 Degrees F |
| Includes Insert | Insert Not Included |
| Spring Range Minimum | 3 psi |
| Housing Material | Carbon Steel |
| Manufacturer Series | MP8000 |
| Includes Positioner | Positioner Not Included |
| Spring Range Maximum | 7 psi |
| Compatible Valve Type | Globe |
| Mounting Style | Mounting Block |
| Specific Valve Action | Spring Return Up |
| Includes Mounting Kit | Valve Mounting Kit Not Included |
| Spring Material | Chrome-Silicon Steel |
| Diaphragm Material | EPDM |
| Yoke Material | Steel |
| Valve Action | Normally Open |
| Effective Diaphragm Area | 25 sq in |
| Control Pressure - Maximum | 25 psi |
| Return Action | Spring Return |
Description

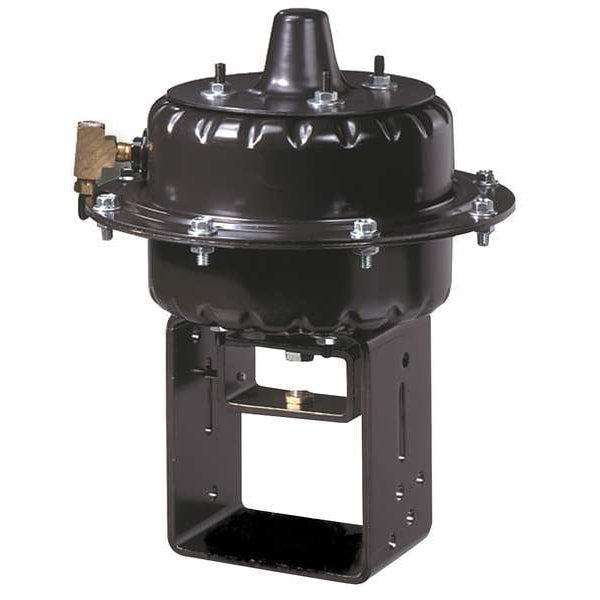

The Johnson Controls MP823C001 is a pneumatic valve actuator with a 3 to 7 psi spring range and a 3/4-inch stroke. It operates on air pressure up to 25 psi within a 0 to 25 psi range, controlling the flow of hot or chilled water. This actuator is used with Johnson Controls VG7000 and VG2000 globe valves in 1 1/2-inch and 2-inch sizes.
