- Maximum Motor Horsepower: 1/14 hp
- Compatible Viscosity Level: Medium
- Drive Style: Direct; Gear
- For Container Capacity: 5 gal
- For Container Type: Small Tanks
- Mounting Location: Top
Specifications
| Part Number | MODEL 1750-12 |
| Brand | Arrow Mixing Products |
| Item | Overhead Stirrer |
| Maximum Motor Horsepower | 1/14 hp |
| Compatible Viscosity Level | Medium |
| Drive Style | Direct; Gear |
| For Container Capacity | 5 gal |
| For Container Type | Small Tanks |
| Mounting Location | Top |
| Mounting Type | Clamp, Stand |
| Number of Blades | 4 |
| Phase | Single |
| Type Fixed | Propeller |
| Shaft Length | 12 in |
| Operating Voltage | 120V AC |
| Rotation | Left Hand |
| Pitch Type | Machine Pitch |
| Blade Diameter | 2 1/2 in |
| Maximum | Mixing Speed 2,000 RPM |
| Motor Type | TENV |
| Pitch Ratio | 1:1 |
| Shaft Diameter | 3/8 in |
Description

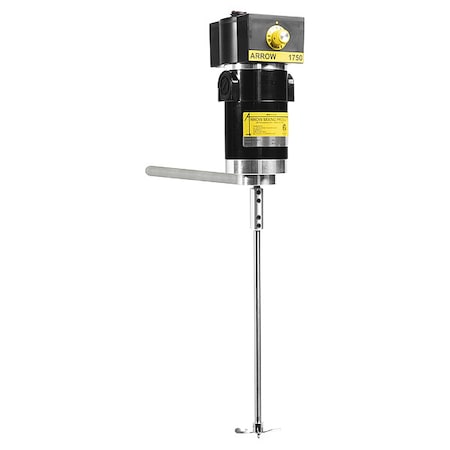

The Arrow Mixing Products MODEL 1750-12 is an overhead stirrer with a 1/14 hp TENV motor operating at 120V AC. It has a direct gear drive, a 12 in shaft with a 3/8 in diameter, and a fixed four-blade propeller measuring 2 1/2 in in diameter. This single-phase unit is for medium viscosity mixing in small tanks up to 5 gal and mounts on top via clamp or stand.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
