- Voltage: 120V AC
- Amps: 21 A
- Wire Size Max: #12 AWG
- Contact HP @ 240V: 2 hp
- NEMA Rating: 3R
- Contact HP @ 120V: 1 hp
Specifications
| Part Number | MIL72ASWUZH-120 |
| Brand | Intermatic |
| Voltage | 120V AC |
| Amps | 21 A |
| Enclosure Type | Plastic |
| Min. Time Setting | 2 hr |
| Max. Time Setting | 6 days 22 hr |
| Height | 4 19/32 in |
| Depth | 3 5/16 in |
| Width | 3 5/16 in |
| Product Height | 4 in; 102.5 mm |
| Product Width | 2 53/64 in; 72 mm |
| Wire Size Max | #12 AWG |
| Product Depth | 2 1/16 in; 52 mm |
| Overall Height | 4 in |
| Overall Depth | 2 1/16 in |
| Overall Width | 2 13/16 in |
| Item | Electromechanical Timer |
| Contact Form | SPDT |
| Max. On/Off Cycles | 48 |
| Contact HP @ 240V | 2 hp |
| Number of Poles | 1 |
| Nominal Max. Time Setting | 7 day |
| Mount | Surface/DIN Rail |
| NEMA Rating | 3R |
| Type | 7-Day |
| Contact HP @ 120V | 1 hp |
| Operating Temp. | -40 Degrees to 185 Degrees F |
| Standards | cCSAus, CE, cRUus |
| Time Setting Range | 2 hr. to 6 days 22 hr. |
| Day Skipper | Yes |
| Description/Special Features | Override Switch, Synchronous Motor |
| Number of Trippers Included | 96 |
| Product Type | Timer |
| Maximum Cycle Time | 7 days |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Applications | Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising |
| Market | Commercial; Industrial |
| Has Override Switch CVL | Yes |
| Input Voltage Ranges | 120 VAC, 60 Hz |
| Shortest Switching Time | ON/OFF 2 hours |
| UL Cerfication File Number | E10694 |
| Has Realtime Clock Face CVL | Yes |
| Operating Humidity | 0 to 95%, Non-condensing |
| Switch Type | SPDT |
| Operating Temperature Max | 185°C |
| Has Captive Trippers CVL | Yes |
| Solutions | Refrigeration; Ventilation; Water Treatment; Generator Exercising |
| Resistive Load Ratings | 21 A, 250 VAC |
| Wiring Option | Screw terminal accepts up to #12 AWG wire |
| Has Finger Safe Terminals CVL | Yes |
| Power Consumption Max | 0.5 VA |
| Packaging Applications | Commercial Refrigeration; Pumps/Motor/Fan Control; Hydroponic Systems; Aerobic Wastewater Treatment Systems; Boilers; Generator Exercising |
| CSA Certification | cCSAus |
| Mounting Options | Surface; DIN |
| Minimum Cycle Time | 2 hrs |
| Timing Interval | 2 hrs |
| Motor Load Ratings | 1 HP, 120 VAC; 2 HP, 250 VAC |
| Operating Temperature Min | -40°C |
| Clock Drive Type | Synchronous |
| Tungsten Load Ratings | 1350 W, 120 VAC |
| Mechanism Type | Analog/Mechanical |
| Features | Manual Override |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Has Captive Trippers | Yes |
| Has Finger-Safe Terminals | Yes |
| Tungsten (NO) | 1350 W, 120 VAC |
| Has Real-time Clock Face | Yes |
| Resistive | 21 A, 250 VAC |
| Operating Temperature Max (°F) | 185 |
| Has Override Switch | Yes |
| Operating Temperature Min (°F) | -40 |
| Motor Load Ratings Ranges | 1 HP, 120 VAC; 2 HP, 250 VAC |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 185 |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Series | MIL72 |
| DC Voltage Rating | 12-24V DC |
| Mounting Style | DIN Rail and Surface |
| Horsepower @ 240V - Maximum | 2 hp |
| Body Material | Plastic |
| Operating Temperature - Maximum | 185 Degrees F |
| NEMA Enclosure Rating | No Enclosure |
| Time Setting - Minimum | 2 hr |
| AC Voltage Rating | 120V AC |
| Horsepower @ 120V - Maximum | 1 hp |
| Indoor/Outdoor Usage | Outdoor |
| On/Off Cycles - Maximum | 48 |
| Time Setting - Maximum | 7 day |
| Current Rating - Maximum | 21 A |
| Number of Trippers - Maximum | 96 |
| Application | Machinery, HVAC |
| Operating Temperature - Minimum | -40 Degrees F |
| Time Minimum Setting | 3 hr. |
| Time Maximum Setting | 8 day |
Description

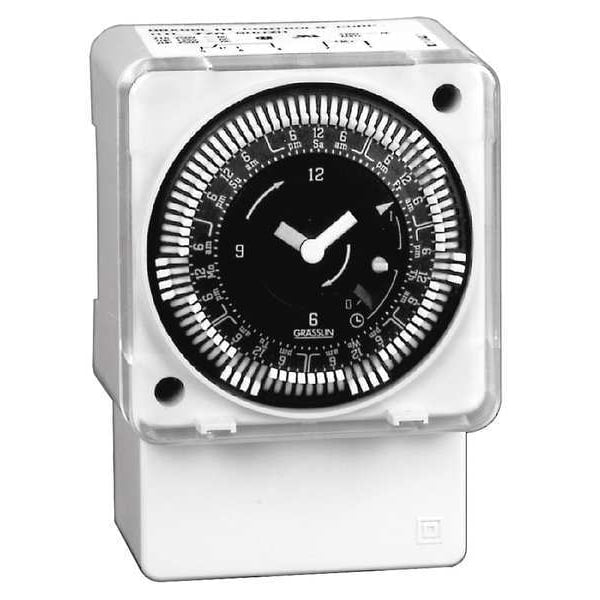

The Intermatic MIL72ASWUZH-120 is a 7-day electromechanical timer with a plastic NEMA 3R enclosure. This type of timer controls electrical loads by opening and closing a single-pole, double-throw (SPDT) switch according to a programmed schedule. It operates on 120V AC, rated at 21 A, with contact ratings of 1 hp at 120V and 2 hp at 240V.
