- Voltage: 208/240V AC
- Amps: 21 A
- Wire Size Max: #12 AWG
- Body Material: Plastic
- NEMA Rating: 3R
- Contact HP @ 240V: 2 hp
Specifications
| Part Number | MIL72AQTUZ-240 |
| Brand | Intermatic |
| Voltage | 208/240V AC |
| Amps | 21 A |
| Time Minimum Setting | 16 min |
| Enclosure Type | Plastic |
| Min. Time Setting | 15 min |
| Depth | 3 5/16 in |
| Height | 4 51/64 in |
| Width | 3 5/16 in |
| Wire Size Max | #12 AWG |
| Product Width | 2 53/64 in; 72 mm |
| Product Height | 4 in; 102.5 mm |
| Product Depth | 2 1/16 in; 52 mm |
| Overall Height | 4 in |
| Overall Depth | 2 1/16 in |
| Overall Width | 2 13/16 in |
| Item | Electromechanical Timer |
| Body Material | Plastic |
| Max. Time Setting | 23 hr 45 min |
| Contact Form | SPDT |
| Max. On/Off Cycles | 48 |
| Standards | cCSAus, CE, cRUus |
| Type | 24-Hour |
| NEMA Rating | 3R |
| Time Setting Range | 15 min. to 23-3/4 hr. |
| Contact HP @ 240V | 2 hp |
| Number of Poles | 1 |
| Mount | Surface/DIN Rail |
| Operating Temp. | -4 Degrees to 131 Degrees F |
| Nominal Max. Time Setting | 24 hr |
| Day Skipper | No |
| Description/Special Features | Battery Backup, Quartz Motor |
| Number of Trippers Included | 96 |
| Contact HP @ 120V | 1 hp |
| Product Type | Timer |
| Has Finger Safe Terminals CVL | Yes |
| Wiring Option | Screw terminal accepts up to #12 AWG wire |
| Switch Type | SPDT |
| Backup Protection Time | 72 Hours |
| Shortest Switching Time | ON/OFF 15 minutes |
| Has Realtime Clock Face CVL | Yes |
| CSA Certification | cCSAus |
| Solutions | Refrigeration; Ventilation; Water Treatment; Generator Exercising |
| Motor Load Ratings | 1 HP, 120 VAC, 50 Hz; 2 HP, 240 VAC, 50 Hz; 1 HP, 120 VAC, 60 Hz; 2 HP, 240 VAC, 60 Hz |
| Mechanism Type | Analog/Mechanical |
| Input Voltage Ranges | 208/240 VAC, 50/60 Hz |
| Operating Temperature Min | -4°C |
| Packaging Applications | Commercial Refrigeration; Pumps/Motor/Fan Control; Hydroponic Systems; Aerobic Wastewater Treatment Systems; Boilers; Generator Exercising |
| Timing Interval | 15 min |
| Power Consumption Max | 1 VA |
| Battery Type | NiMh |
| Resistive Load Ratings | 21 A, 250 VAC |
| Mounting Options | Surface; DIN |
| Clock Drive Type | Quartz |
| Minimum Cycle Time | 15 min |
| Applications | Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising |
| Operating Temperature Max | 131°C |
| Operating Temperature with Battery Backup | -4° F to 131° F (-20° C to 55° C) |
| Tungsten Load Ratings | 1350 W, 120 VAC |
| Maximum Cycle Time | 24 hrs |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Operating Humidity | 0 to 95%, Non-condensing |
| Market | Commercial; Industrial |
| Backup Type | 72-hour Carry-over; Battery; Self-recharging |
| Battery Service Type | Rechargeable |
| Has Real-time Clock Face | Yes |
| Input Voltage Range(s) | 208/240 VAC, 50/60 Hz |
| Tungsten (NO) | 1350 W, 120 VAC |
| Operating Temperature Min (°F) | -4 |
| Motor Load Ratings Ranges | 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz |
| Has Finger-Safe Terminals | Yes |
| Features | Quartz Drive with Self-Recharging Battery Backup |
| Resistive | 21 A, 250 VAC |
| Operating Temperature Max (°F) | 131 |
| Operating Temperature Min (°F) | -4 |
| Operating Temperature Max (°F) | 131 |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| AC Voltage Rating | 208/240V AC |
| Application | Machinery, HVAC |
| Series | MIL72 |
| Indoor/Outdoor Usage | Outdoor |
| Horsepower @ 240V - Maximum | 2 hp |
| Time Setting - Maximum | 24 hr |
| Horsepower @ 120V - Maximum | 1 hp |
| Number of Trippers - Maximum | 96 |
| On/Off Cycles - Maximum | 48 |
| NEMA Enclosure Rating | No Enclosure |
| Time Setting - Minimum | 15 min |
| Mounting Style | DIN Rail and Surface |
| Current Rating - Maximum | 21 A |
| Operating Temperature - Minimum | -4 Degrees F |
| Operating Temperature - Maximum | 131 Degrees F |
| Time Maximum Setting | 25 hr. |
Description

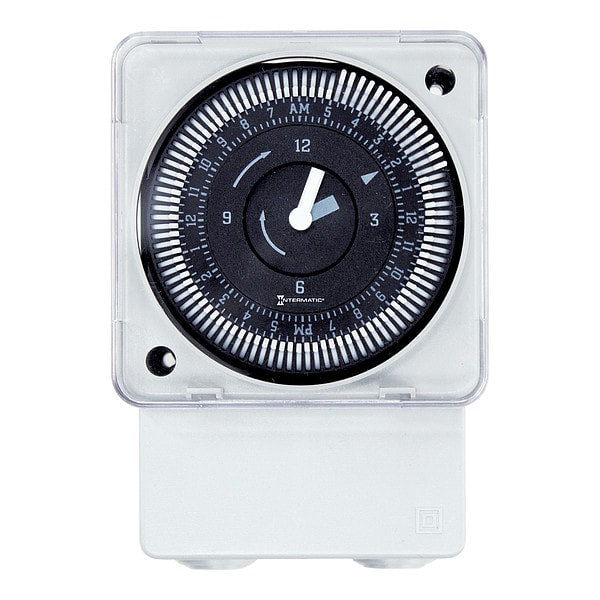

The Intermatic MIL72AQTUZ-240 is a 24-hour electromechanical timer. This timer controls electrical loads by opening and closing a switch according to a programmed schedule. It operates at 208/240V AC and 21 A, features a plastic enclosure and body, and is rated NEMA 3R with cCSAus, CE, and cRUus approvals.
