- Series: MHF2
- Open Width: 32 mm
- Stroke Length: 40 mm
- Maximum Operating Pressure: 101.53 psi
- Minimum Operating Pressure: 14.5 psi
- Overall Length: 50 mm
Specifications
| Part Number | MHF2-16D1R |
| Brand | SMC |
| Item | Air Gripper |
| Series | MHF2 |
| Open Width | 32 mm |
| Stroke Length | 40 mm |
| Maximum Operating Pressure | 101.53 psi |
| Minimum Operating Pressure | 14.5 psi |
| Overall Length | 50 mm |
| Overall Width | 94 mm |
| Overall Height | 33 mm |
| Body Material | Aluminum |
| Finger Material | Stainless Steel |
| Inlet Size | M5 x 0.8 |
| Maximum Operating Temperature | 140 Degrees F |
| Minimum Operating Temperature | 14 Degrees F |
| Standards | RoHS Compliant |
| Weight | 445 g |
| Body Material Finish | Hard Anodized |
| System of Measurement | Metric |
| Seal Material | Nitrile |
| UPC | 00713049196930 |
Description

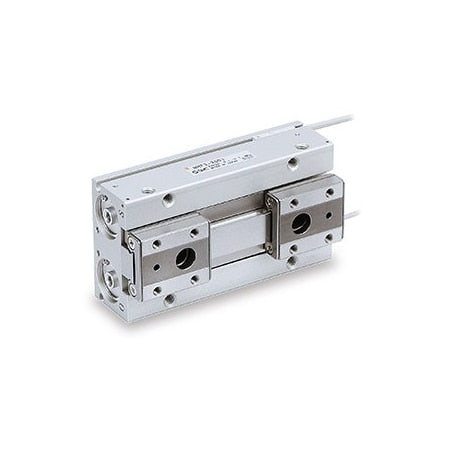

The SMC MHF2-16D1R is a low profile air gripper from the MHF2 series with a 16 mm bore. It has a stroke length of 40 mm, an open width of 32 mm, and an aluminum body with a hard anodized finish and stainless steel fingers. The gripper operates between 14.5 and 101.53 psi, has an M5 x 0.8 inlet, and weighs 445 g.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
