- Voltage: 24V AC
- For Shaft Diameter: 5/8 in
- Ambient Temp. Range: -22 Degrees to 131 Degrees F
- Housing Material: Polymer
- Minimum Operating Temperature: -22 Degrees F
- Maximum Operating Temperature: 131 Degrees F
Specifications
| Part Number | MEP-4002 |
| Brand | Kmc Controls |
| Mounting Type | Direct Mount |
| Spring Return | Non-Spring Return |
| Signal Type | Proportional |
| Torque | 40 in-lb |
| Voltage | 24V AC |
| Width | 2 5/8 in |
| Height | 2 1/2 in |
| Depth | 5 3/8 in |
| Overall Width | 2 5/8 in |
| For Shaft Width | 1/2 in |
| For Shaft Height | 1/2 in |
| Overall Depth | 5 1/4 in |
| For Shaft Diameter | 5/8 in |
| Overall Height | 2 1/2 in |
| Type | Non-Spring Return |
| Motor Direction | CW or CCW |
| Timing | 90 sec |
| Ambient Temp. Range | -22 Degrees to 131 Degrees F |
| Power Consumption | 4 VA |
| Includes | Non-Rotation Bracket |
| Shaft Type | 1/4 in to 5/8 in Round or 1/4 in to 7/16 in Square |
| Item | Actuator |
| Electrical Connections | 22-14 AWG Wire Clamp |
| For Use With | Dampers or Valves that Require Up to 40 in-lb of Torque |
| Stroke Deg. | 0 to 95 |
| Housing Material | Polymer |
| Rated Torque | 40 in-lb |
| Output Signal | 0 to 10V DC |
| Minimum Operating Temperature | -22 Degrees F |
| Number of Auxiliary Switches | 0 |
| Maximum Operating Temperature | 131 Degrees F |
| For Shaft Shape | Round, Square |
| Product Type | Actuator |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Time to Close | 90 sec |
| Compatible with Series | BC, BX, VFB-43, VFB-46 |
| Shaft Rotation | CW/CCW |
| Stroke Degree | 0 to 95 Degrees |
| Contact Form | SPDT |
| NEMA Rating | 2 |
| IP Rating | IP54 |
| Weight | 1.1 lb |
| Valve Application | Damper and Valve |
| Standards | CE Certified, Complies with Canadian ICES-003, FCC Class B, Part 15, Subpart B, UL 873 |
| Input Voltage | 24V AC |
| Electrical Connection Type | Hardwired |
| Application | Dampers, Valves, VAV Boxes |
Description

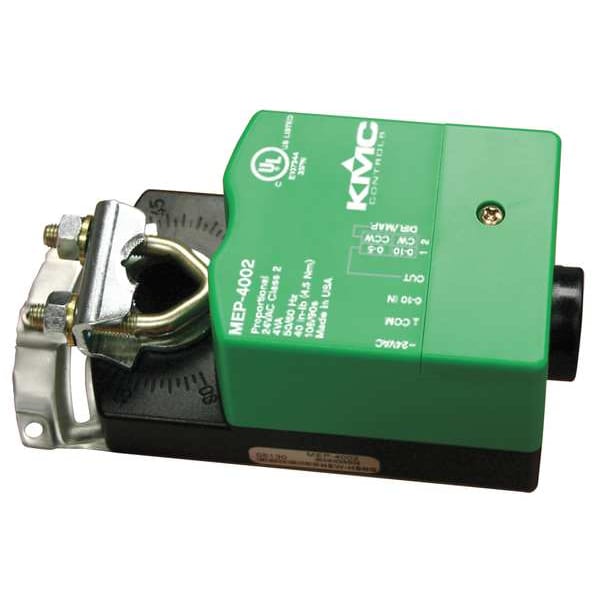

The Kmc Controls MEP-4002 is a 40 in.-lb. non-spring return electric actuator with a proportional 0-10 VDC signal and 24V AC power. This actuator opens and closes valves or dampers based on the control signal, and it includes a non-rotation bracket for direct mount on 1/4 in to 5/8 in round or 1/4 in to 7/16 in square shafts, operating in ambient temperatures from -22°F to 131°F.
