- Voltage: 24V AC/DC
- Ambient Temp. Range: -22 Degrees to 140 Degrees F
- Minimum Operating Temperature: -22 Degrees F
- Maximum Operating Temperature: 140 Degrees F
- NEMA Rating: 5
- Input Voltage: 24V AC/DC
Specifications
| Part Number | M9310-HGA-2 |
| Brand | Johnson Controls |
| Mounting Type | Direct Mount |
| Spring Return | Non-Spring Return |
| Signal Type | Floating Point, On/Off, Proportional |
| Torque | 89 in-lb |
| Voltage | 24V AC/DC |
| Width | 3 3/16 in |
| Height | 5 13/32 in |
| Depth | 2 7/16 in |
| Overall Width | 3 1/4 in |
| Overall Height | 5 3/8 in |
| Overall Depth | 2 1/2 in |
| Ambient Temp. Range | -22 Degrees to 140 Degrees F |
| Electrical Connections | 120 in (3.05 m) 19 AWG Plenum Cable |
| Switch Type | 1 SPDT or 2 SPDT |
| Item | Actuator |
| Stroke Deg. | 35 to 95 |
| Power Rating | 1.3W |
| Timing | 90 sec |
| Power Consumption | 24 VA |
| Motor Direction | CW or CCW |
| Minimum Operating Temperature | -22 Degrees F |
| Number of Auxiliary Switches | 2 |
| IP Rating | IP54 |
| Valve Application | Damper and Valve |
| Maximum Operating Temperature | 140 Degrees F |
| Stroke Degree | 35 to 95 Degrees |
| Shaft Rotation | CW/CCW |
| Electrical Connection Type | Hardwired |
| NEMA Rating | 5 |
| Input Voltage | 24V AC/DC |
| Product Type | Damper Actuator |
| Contact Form | SPDT |
| Rated Torque | 89 in-lb |
| Time to Close | 90 sec |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Output Signal | 0 to 10V DC |
| Application | Dampers |
Description

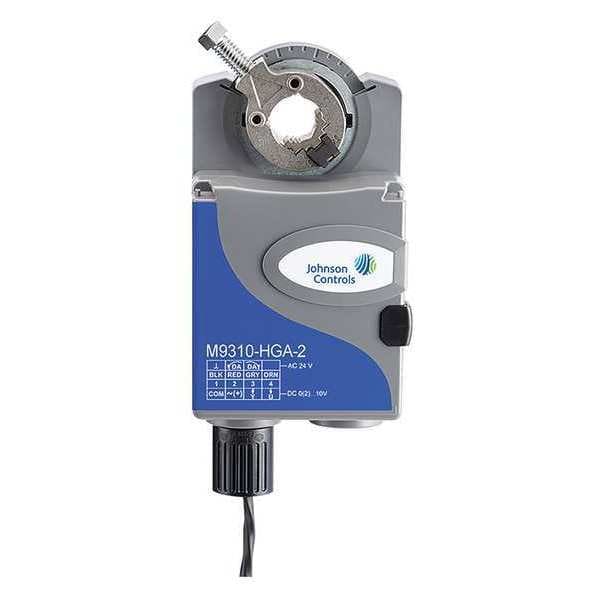

The Johnson Controls M9310-HGA-2 is a direct-mount rotary damper actuator with 89 in.-lb. of torque. It operates on 24V AC/DC power with a 1.3W power rating and accepts floating point, on/off, or proportional control signals. The actuator includes one SPDT or two SPDT auxiliary switches and features a 120-inch (3.05 m) 19 AWG plenum cable for electrical connections. It is rated for an ambient temperature range of -22°F to 140°F.
